Ballast Lights: Types, Functions, and LED Compatibility

Ballast lights help you manage how electricity moves in your lights. Lighting ballasts stop lamps from flickering and getting too hot. They do this by controlling current and voltage. This helps your lamps last longer and stay safe. Studies show the right ballast stops lamps from breaking early. It also makes lighting safer. When you change to LED lighting, not every ballast fits every LED. Many people pick LED because it saves energy. LED drivers now take the place of old ballasts for better results. New trends show ballasts and LED drivers work with smart controls. They also help you use less energy at home or work. You can learn more about us, our Product, and Led Light solutions to make smart choices.

Key Takeaways

• Ballast lights help control how much electricity goes to lamps. They stop lights from flickering and getting too hot. This helps lights last longer and keeps them safe.

• There are three main types of ballasts. Magnetic ballasts are older and bigger. Electronic ballasts are quieter and save energy. LED drivers are made for LED lights.

• Not every LED tube works with all ballasts. You should check if they match before you upgrade. This helps stop flickering or breaking the lights.

• Plug-and-play LED tubes are simple to put in with electronic ballasts. Ballast-bypass and advanced LED tubes need special wiring by a professional.

• Always follow safety rules when working with ballasts or LED upgrades. Call an electrician if you are not sure. This keeps your lights safe and working well.

What Are Ballast Lights?

Ballast Lights Explained

You may wonder what makes your fluorescent or HID lamps work safely. Ballast lights play a key role in this process. A ballast is an electrical device that sits in series with your lamp. It controls the flow of electricity to the lamp. When you turn on the light, the ballast gives a high voltage to start the lamp. After the lamp starts, the ballast keeps the current at a safe level. This prevents the lamp from drawing too much power and burning out. You will find that lighting ballasts act as stabilizers. They help your lamps stay bright and last longer. There are two main types of light ballasts: magnetic and electronic. Magnetic ballasts use coils and magnets, while electronic ballasts use digital circuits. Both types help you get the best performance from your tubes.

Tip: If you hear buzzing or see flickering, your light ballasts may need attention.

Role in Lighting Systems

Lighting ballasts do more than just start your lamps. They protect your tubes from damage by controlling voltage and current. Without a ballast, your lamp could overheat or fail quickly. Ballast lights also help keep your lighting steady. You avoid flickering and buzzing when your light ballasts work well. This makes your space safer and more comfortable. You will see that lighting ballasts are important for both safety and energy savings. They help your tubes use the right amount of power. Different types of ballasts offer different features. Electronic ballasts often run cooler and quieter than magnetic ones. When you upgrade to LED tubes, you need to check if your current light ballasts are compatible. This step ensures your new lighting works safely and efficiently.

Different Types of Lighting Ballasts

Lighting ballasts come in a few main types. Each type controls electricity in its own way. Knowing the types helps you pick the right one for your lamps. The main types are magnetic ballasts, electronic ballasts, and LED drivers. Each type works best with certain lamps. Each has good and bad points.

Magnetic Ballasts

Magnetic ballasts are the oldest kind. You often see them in old buildings and factories. These ballasts use a core and coil. The coil makes a magnetic field to control current. Magnetic ballasts work at the same frequency as your power, about 60 Hz.

Note: Magnetic ballasts last a long time and work in tough places.

Magnetic ballasts are big and heavy. They can make a humming sound and cause flickering. These ballasts are simple and cheap. Many old lighting systems still use them. They work with fluorescent light ballasts and HID lamps. But they waste more energy and make more heat than newer types.

Most LED tubes do not work with magnetic ballasts. If you want to use LED, you may need to take out or skip the magnetic ballast. This helps your new LED ballast work well and safely.

Electronic Ballasts

Electronic ballasts are newer and more advanced. You find them in modern offices, schools, and homes. These ballasts use electronic circuits. They change AC power to DC, then back to high-frequency AC. This lets them work at 20,000 to 80,000 Hz.

Here is a table that shows the main differences between magnetic and electronic ballasts:

Electronic ballasts are smaller and lighter. You will not hear buzzing or see flickering. They use less energy and help tubes last longer. Electronic ballasts work with most fluorescent tubes and some LED tubes. You may see "electronic light ballasts" on labels.

Electronic ballasts save energy by working at high frequencies. This means less heat and lower bills. They last longer than magnetic ballasts. Some have dimming and steady current features.

LED Drivers

LED drivers are special ballasts for LED lighting. You need an LED driver because LEDs need steady current or voltage. Old ballasts do not work for LED lamps. LED drivers change AC power from the wall into DC power for LEDs.

There are two main types of LED drivers:

• Constant current drivers give a steady current and change voltage as needed. They work best for strong LEDs, like street lights.

• Constant voltage drivers give a steady voltage and change current. You see them in LED strips and decorative lights.

💡 Tip: LED drivers often have dimming, heat protection, and smart controls. These help your LED ballast last longer and work better.

LED drivers are important for LED lighting. They stop damage from voltage spikes and keep lights working well. Most LED tubes do not need old light ballasts. Instead, you use an LED driver or a built-in driver. When you switch to LED, you may need to remove the old ballast.

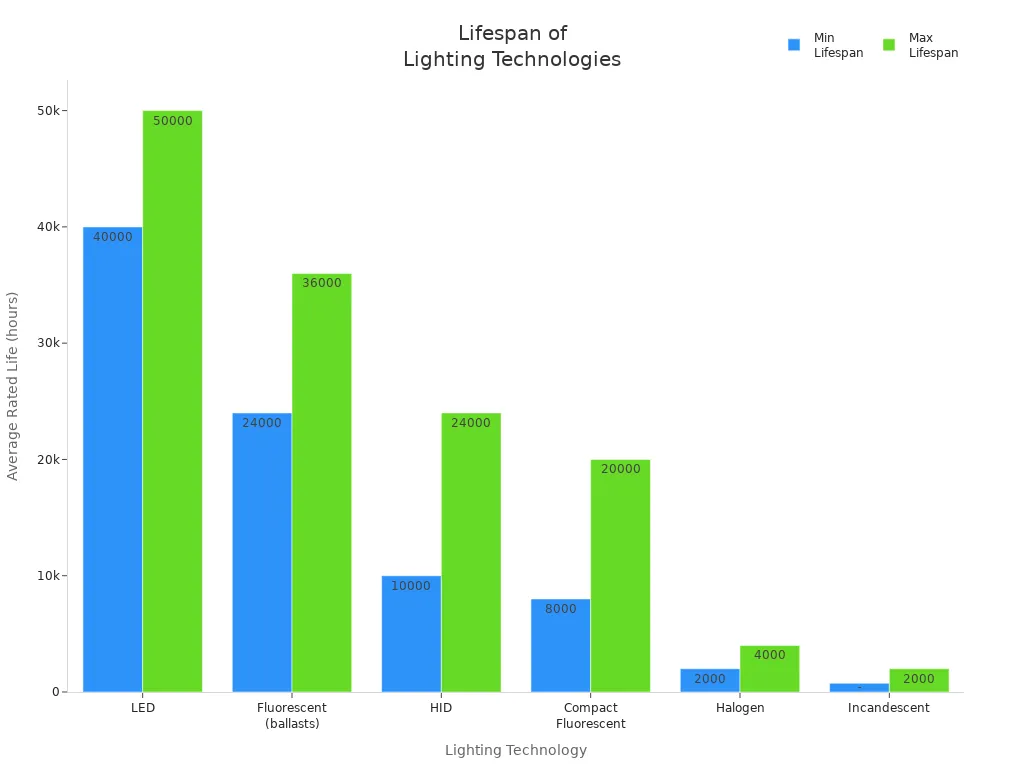

Here is a quick look at the average lifespan of different lighting technologies:

You can see that LED drivers and LED ballasts last the longest. This makes them a smart pick for new lighting.

Remember: Pick the right ballast or LED driver for your lamp. Always check if it fits before you change your lighting system.

How Lighting Ballasts Work

Current and Voltage Regulation

Lighting ballasts help lamps work safely. When you turn on a lamp, the ballast sends a high voltage to start it. After the lamp is on, the ballast lowers the voltage and controls the current. This is important because fluorescent and HID lamps have "negative resistance." If the current is not controlled, the lamp can use too much power and burn out fast.

Lighting ballasts act like a guard for your lamp. They make sure the lamp gets the right amount of electricity. ANSI standards say ballasts must lower the high starting current to a safe level. This keeps your lamp from getting too hot and helps it last longer. There are different types of ballasts, like instant start, rapid start, and programmed start. Each type manages voltage and current in its own way. Instant start ballasts use a quick, high voltage to light the lamp. Programmed start ballasts warm the lamp’s electrodes first to help them last longer.

Modern light ballasts use magnetic or electronic parts to do this job. Electronic lighting ballasts work at higher frequencies. This means less flicker and better energy savings. You get a steady, bright light that does not waste energy.

💡 Tip: If your lamp flickers or gets too hot, your ballast might not be working right. Always check your lighting ballasts if you see these problems.

Starting and Protecting Lamps

Light ballasts do more than just start your lamps. They also protect your lighting system from damage. Lighting ballasts have safety features that keep your lamps and space safe. These features help stop fires, shocks, and other dangers.

Here is a table showing some common safety mechanisms found in modern ballasts:

You can see that lighting ballasts do a lot to keep your lamps safe. These features help you avoid expensive repairs and keep your lighting system working well. When you pick the right light ballasts, you protect your lamps and your building.

LED and Ballast Compatibility

It is important to know how LED tubes work with ballasts. This helps you make good choices when you upgrade your lights. Not every LED tube fits every ballast. You need to learn about the types of tubes and how they connect. There are four main types of LED tubes. Each type has its own way to install and works with certain ballasts. The table below shows the four types, how to put them in, and what ballasts they use. You will also find out how a ballast is different from an LED driver.

LED Tubes and Ballasts

There are four main types of LED tubes you can buy. Each type works with ballasts and wiring in its own way. The table below gives you a simple look:

Each LED tube type needs a different way to install. Some tubes use your old ballast. Others need you to take out the ballast or add a new driver. Knowing these things helps you pick the best LED tube for your room.

Plug-and-Play (Type A) LEDs

Plug-and-play LEDs are called Type A tubes. They make it easy to upgrade your lights. You just take out the old fluorescent tube and put in the new LED tube. You do not need to change wires or remove the ballast. These tubes are also called ballast-compatible LED lamps.

You must check if your ballast matches the LED tube. Type A tubes only work with electronic ballasts. They do not work with magnetic ballasts or without a ballast. Companies test their tubes with many ballasts and give you a list of which ones work. Always look at this list before you buy or put in plug-and-play LEDs.

Tip: If your ballast is old or broken, your LED tube will not turn on. You may need to get a new ballast or pick a different LED tube.

Key points for Type A LED tubes:

• Easy to put in, no need to change wires.

• Only work with electronic ballasts.

• Check the list from the company to see if your ballast works.

• Also called ballast-compatible LED lamps.

Ballast-Bypass (Type B) LEDs

Type B LED tubes are also called direct-wire tubes. They do not use a ballast at all. You must take out the ballast and connect the tube right to the main power. This saves energy and stops problems from a bad ballast. These tubes are used in big jobs where you want less work later.

Putting in Type B tubes takes more steps. You need to change the wires and sometimes the sockets. Single-ended tubes need non-shunted sockets. Double-ended tubes are safer and easier to put in. Because you work with high voltage, you should let an electrician do the job.

Safety tips for Type B LED tubes:

• You could get shocked if you do not install them right.

• Always turn off the power before you start.

• Use non-shunted sockets for single-ended tubes.

• Double-ended tubes are safer because they only get power when fully in.

• Never put a fluorescent tube in a fixture changed for Type B tubes.

⚠️ Note: Ballast-bypass tubes save money over time but need careful work. Always follow the rules and get help if you are not sure.

Hybrid (Type AB) and Type C LEDs

Hybrid LED tubes, or Type AB, give you the most choices. You can use them with your old ballast or skip the ballast and wire them to power. You can start with plug-and-play and later switch to bypass if your ballast breaks. Hybrid tubes help you upgrade your lights step by step.

Type C LED tubes use an external LED driver, not a ballast. You must take out the old ballast and put in a new driver between the power and the tube. This setup gives you cool features like dimming and smart controls. Type C tubes last longer and work better, but putting them in is harder. You should ask a pro to put in these tubes.

Key points for Hybrid and Type C tubes:

• Hybrid tubes work with or without a ballast.

• Type C tubes need an external LED driver, not a ballast.

• Type C tubes have features like dimming and smart controls.

• Both types help you get ready for the future.

Ballasts vs. LED Drivers: What’s the Difference?

You might wonder how a ballast and an LED driver are different. A ballast controls current and voltage for fluorescent or HID lamps. An LED driver does this for LED lights. You need the right device for your lamp. LED light ballasts do not work with most LED tubes. The LED ballast or driver is important to keep your LED lights safe and working for a long time.

When you use t8 led tubes or other led tubes, always check if you need a ballast, a driver, or a direct connection. Picking the right one helps your led light tubes work well and last longer.

💡 Remember: Always match the LED tube type to your fixture and wires. This keeps your lighting safe and saves energy.

Identifying Your Light Ballasts

Locating Ballasts in Fixtures

Most fixtures with fluorescent or HID lamps have a ballast inside. To find it, follow these steps: First, turn off the power at the breaker. Use a voltage tester to make sure it is safe. Next, take out the fluorescent or LED tubes. Then, remove the cover or lens from the fixture. This lets you see the ballast. Look for a box that is rectangular or round. The ballast is usually in the middle or on one side. If you hear buzzing or see flickering, the ballast might have a problem. Always look for burn marks or leaks before touching the ballast. Knowing where the ballast is helps you stay safe when you change a fluorescent tube or upgrade to a led ballast.

Reading Ballast Labels

The label on the ballast gives you key details for upgrades or fluorescent tube replacement. You will see things like:

• Ballast type (electronic or magnetic)

• Ballast model number

• Voltage rating

• Starting method (rapid start, instant start, or programmed start)

Check the label to see if your led ballast fits your new led tubes. The label also shows how many tubes the ballast can use and the wattage. Take a picture of the label so you can check it later when you shop for a new led ballast or led tubes.

Tip: Always check the ballast label with the compatibility chart for your led tubes.

Determining Compatibility

You need to know if your ballast works with your new led tubes. Here is how you can check: First, find the lamp type and wattage. Next, count how many tubes the ballast can use. Then, see if the ballast is magnetic or electronic. Magnetic ballasts are heavier and often make a humming sound. Electronic ballasts are lighter and quiet. Check the starting method. Older ballasts often use rapid start. Newer led ballasts use instant start or programmed start. Use the label to match with the led tube’s compatibility chart. If the ballast and led tubes do not match, you may see flickering, buzzing, or dimming. Wrong wiring during a retrofit can be unsafe. If you want to test fluorescent light ballasts, use a multimeter after turning off the power. If you find damage or no current, replace the ballast with a new led ballast for better results.

Installation Steps for LED Upgrades

Safety Precautions

Before you start any LED ballast installation, you must follow important safety steps. Fluorescent lights contain mercury, which can harm your health if a bulb breaks. LEDs do not have mercury, so they are safer to handle. LEDs also make less heat, which lowers the risk of fire or overheating. This makes your workspace safer, especially if you use lights for many hours.

Here are some safety tips you should always follow:

• Check that your work meets local and state electrical codes, including the National Electrical Code.

• Turn off the power at the breaker or remove the fuse before you begin.

• Use a voltage tester to make sure no electricity is present.

• Use insulated tools with non-conductive handles.

• Read and follow the instructions for your specific LED fixtures.

• Plan your work area for safety and efficiency.

• Ask someone to help you if needed.

⚠️ Always use caution when you install and maintain led ballasts. If you are unsure, call a licensed electrician.

Installing Plug-and-Play LEDs

Plug-and-play (Type A) LED tubes make upgrades easy. You do not need to rewire or remove the ballast if you have an electronic ballast. Here is a step-by-step guide to led ballast installation for plug-and-play tubes:

1. Turn off the power at the breaker.

2. Remove the diffuser if your fixture has one.

3. Take out the old fluorescent tubes.

4. Check that your ballast matches the LED tube. If not, use a different installation method.

5. Insert the new LED tubes into the holders and twist to lock them in place.

6. Replace the diffuser.

7. Turn the power back on.

💡 Always check the compatibility chart for your LED tubes before you start.

Ballast-Bypass Installation

Ballast-bypass (Type B) LED tubes need more work. You must remove the old ballast and wire the sockets directly to the power. This type of led ballast installation saves energy and avoids future ballast problems.

Follow these steps:

1. Turn off the power at the breaker.

2. Remove the tubes and fixture cover.

3. Find and disconnect the wires from the ballast.

4. Take out the ballast.

5. Rewire the sockets to connect directly to the line voltage. Use non-shunted sockets for single-ended tubes.

6. Install the new LED tubes.

7. Replace the cover and turn the power back on.

⚠️ Only a licensed electrician should do this job. Ballast-bypass wiring can be dangerous if done wrong.

Hybrid and Type C Installation

Hybrid (Type AB) LED tubes give you flexibility. You can use them with your current ballast or bypass the ballast later. For Type C tubes, you must remove the ballast and install a new external LED driver.

Here is how you can do a Type C led ballast installation:

1. Turn off the power.

2. Remove the old tubes and ballast.

3. Install the new LED driver in place of the ballast.

4. Connect the driver to the sockets and power supply as shown in the instructions.

5. Insert the Type C LED tubes.

6. Turn the power back on.

🛠️ Hybrid and Type C installations may need extra wiring. Always follow the manufacturer’s instructions and local codes.

Troubleshooting Ballast Lights and LEDs

Common Issues

When you change your lights, you might have some problems. Many people see these issues:

• Lights flicker or make a buzzing noise.

• Lamps do not turn on or take a long time to light up.

• The room looks dim or the light is not even.

• Some ballasts, like old or magnetic ones, do not work well.

• The fixture or led tube gets too hot and might stop working early.

• You could have safety problems, like sparks or shocks, after changing wires.

• Some ballasts do not let you dim the lights or use special controls.

• Led tubes may not work well with old T12 ballasts.

• Things like dust, water, or heat can make lights fail.

You may also see that some led tubes do not work with some ballasts. This can make your lights act strange or even break your system.

Solutions and When to Replace

You can fix many ballast and led problems with easy steps:

1. Look at all the wires. Make sure wires, sockets, and ballasts are tight. Loose wires can make lights flicker or not work.

2. Check if your led tubes fit your ballast type. If not, use a tube that matches or try a ballast-bypass.

3. Test your dimmer switches. Some do not work with led tubes. Change them to led-friendly dimmers if you need to.

4. Buy good led drivers and tubes. Cheap ones can flicker or stop working soon.

5. Keep your lights cool. Air moving around helps stop overheating and keeps parts safe.

6. Check your power. If the voltage goes up or down, your lights can have problems. Spread out your power use if you see trouble.

7. Change any bad or old ballasts. If a ballast is loud, hot, or leaking, get a new one.

8. If you still have problems, call the company for help or think about getting new led lights.

🛠️ If you are not sure about wires or ballasts, call an electrician. Safety is most important.

A table can help you know when to change parts:

Choosing Ballasts and LEDs

Factors to Consider

When you choose a new ballast or LED tube, you need to look at several important details. Picking the right option helps your lights work well and last longer. Here are the main things you should check:

1. Identify the lamp type. Make sure the ballast matches your tube, such as T8, T12, or T5. A T8 ballast will not work for a T5 lamp.

2. Count how many lamps your ballast must power. Some ballasts work with two lamps, while others handle four.

3. Choose the right start type. You can pick instant, rapid, or programmed start, depending on your needs.

4. Check the voltage. The ballast voltage must match your fixture’s supply.

5. Measure the size of your ballast. The new ballast must fit in the same space as the old one.

6. Think about ballast factor. This affects how bright your lights are and how much energy they use.

7. Decide if you want dimmable lights. Some ballasts and LED tubes let you control brightness.

8. For LED upgrades, consider if you want a plug-and-play tube or a ballast-bypass type. Ballast-bypass tubes often make installation and maintenance easier.

You should also look at color temperature. Warm white (2700K-3000K) works well in homes and hotels. Daylight (5000K-6000K) fits offices and shops. Focus on lumens, not just wattage, to get the right brightness. Always check the physical size of both the ballast and the tube before you buy.

💡 Tip: Matching the correct types of ballasts and tubes keeps your lighting safe and efficient.

DIY vs. Professional Help

You might wonder if you can install new ballasts or LED tubes yourself. Some jobs, like swapping plug-and-play LED tubes, are simple. You can do these with basic tools and safety steps. If you only need to change a tube, you often do not need special skills.

Other tasks, such as ballast-bypass wiring or installing a new LED driver, can be risky. These jobs involve working with high voltage. Mistakes can cause shocks or fires. If you need to rewire a fixture or change the ballast type, you should call a licensed electrician.

Here is a quick guide:

⚠️ Always put safety first. If you feel unsure, ask a professional for help.

Picking the right ballast or LED driver is very important. This keeps your lights safe and saves energy. Fluorescent ballasts and LED drivers are not the same. You need to match your lamp and fixture. If you use a ballast bypass, you save more energy and do less work later. Plug-and-play tubes are fast and easy to use. Always look at the manufacturer’s chart before you buy anything. If you are not sure, ask an expert or check guides from good brands. This helps you stop problems and keeps your lights working well.

💡 Tip: Look at compatibility lists from brands like Philips or Satco. This helps you pick the best option for your upgrade.

FAQ

What does a lighting ballast do?

A lighting ballast controls the current and voltage for your lamp. It helps your lamp start safely and keeps it from overheating. You get steady light and longer lamp life with the right ballast.

Can you use LED tubes with any ballast?

No, you cannot use LED tubes with every ballast. Always check the LED tube’s compatibility chart. Some LED tubes work only with electronic ballasts. Others need you to remove the ballast before installation.

How do you know if your ballast is bad?

You might notice flickering, buzzing, or dim lights. Sometimes, your lamp will not turn on at all. If you see burn marks or smell something odd, your ballast may need replacement.

Do you need an electrician to install LED tubes?

You can install plug-and-play LED tubes yourself. For ballast-bypass or Type C tubes, you should hire a licensed electrician. These jobs involve wiring and can be dangerous if done wrong.
