Understanding Ballast Lights and How They Work with LED Tubes

Have you ever thought about changing old fluorescent tubes for new LED lights at home? Ballast Lights play a crucial role in controlling how electricity moves in many light fixtures, making them essential for safety and optimal performance. If your LED light tubes are compatible with your ballast, upgrading is both easy and safe. Understanding how Ballast Lights and LED tubes work together can lead to benefits such as lower energy bills, reduced heat, and longer-lasting lights.

Here’s a quick look at why many people choose to upgrade their lighting products:

Find out more About Us and discover how selecting the right ballast lights and LED products can make a significant difference in your home.

Key Takeaways

• Switching to LED tubes can save you money on energy. They also make less heat, so your home stays cooler. This helps your home use energy better.

• It is important to know your ballast type. This helps you pick the right LED tube. The right choice makes installing easier.

• You need the right LED driver for LED tubes. Regular ballasts do not work with LEDs. They cannot power LEDs safely.

• Ballasts have safety features to stop electrical problems. Always look for these features to keep your lights safe.

• It is important that your LED tube fits your ballast. Always check this to stop flickering or damage.

Ballast Lights Overview

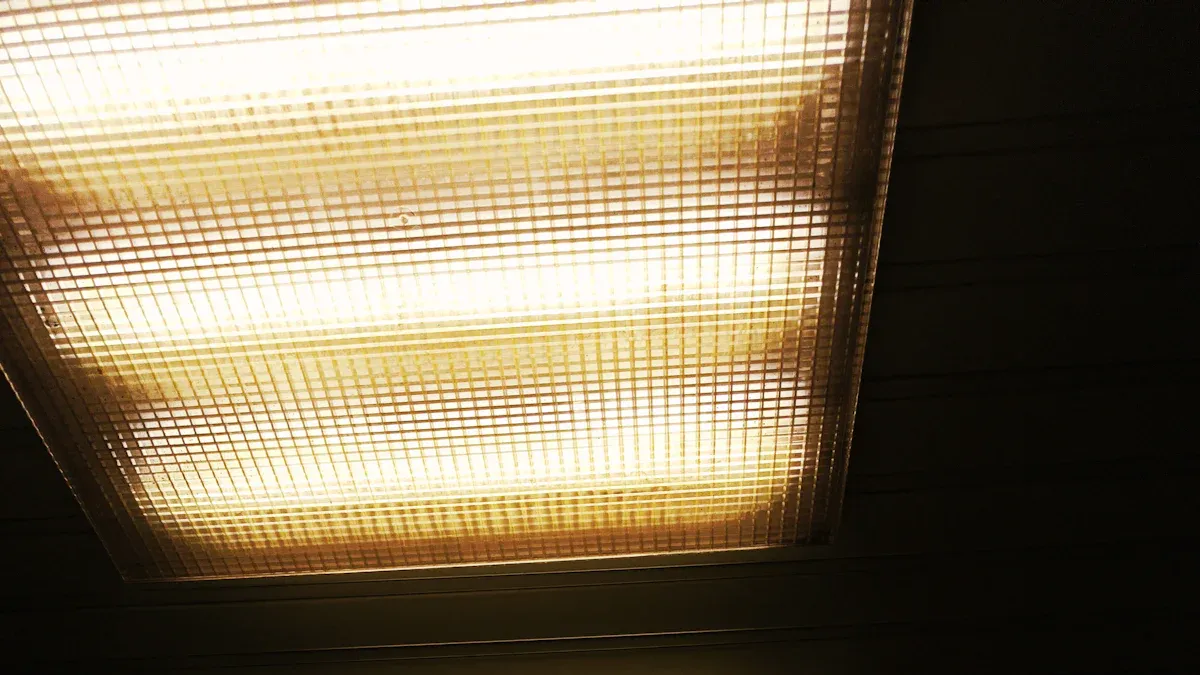

What Are Ballast Lights

Ballast Lights are found in many older lights. They are often used with fluorescent tubes. These devices help control electricity. This keeps your lights safe and working well. There are different types of Ballast Lights. Each type has its own features and jobs.

Here is a table that shows the main types of ballasts and what makes each one special:

Ballast Lights stop fluorescent lamps from getting too much electricity. They help your lights turn on fast and work smoothly.

Tip: If you want to upgrade your lighting, knowing which type of ballast you have can help you choose the right LED tube.

How Ballasts Work

Ballast Lights help keep your lighting system safe. When you turn on a fluorescent lamp, the ballast sends high voltage to start it. After the lamp starts, the ballast controls the current. This stops the lamp from burning out.

A ballast is like a traffic cop for electricity. It keeps the flow steady and stops problems. Here is how ballasts work step by step:

1. The ballast blocks too much current from going to the lamp.

2. It sends a strong voltage to start the lamp.

3. It keeps checking and changing the voltage so the lamp works well.

Ballast Lights use different ways to do their job. Magnetic ballasts use coils and wires to slow down the current. Electronic ballasts use circuits to control electricity better. Both types help your lights last longer and stay safe.

• Ballasts control the electrical current in fluorescent lamps to prevent them from burning out.

• They provide the necessary voltage to start the arc between the lamp's electrodes.

• Magnetic ballasts use inductive principles to stabilize the flow of electricity.

Note: If your lights flicker or take a long time to start, you may have an older magnetic ballast. Upgrading to an electronic ballast or LED tube can solve these issues.

Types of Ballasts

Magnetic

Magnetic ballasts are found in old lights. They use a coil and iron core to control electricity. These ballasts are big and heavy. They often make a buzzing noise when the light is on. Lights may flicker with magnetic ballasts. They work at a low frequency, about 60 Hz. This low frequency can make lights flicker and hum.

Tip: If your lights flicker or buzz, you likely have a magnetic ballast.

Electronic

Electronic ballasts use special circuits. Most new lights have these ballasts. They are small and light. They work at a much higher frequency, from 20,000 Hz to 60,000 Hz. This high frequency stops flicker and noise. Electronic ballasts save more energy. They turn more electricity into light and waste less as heat. You pay less for energy and your lights last longer.

• Electronic ballasts use electricity better.

• They waste less energy as heat.

• You get brighter lights and lower bills.

LED Drivers

LED drivers are not like regular ballasts. You need an LED driver for LED tubes. The driver changes high voltage AC power to low voltage DC power. This keeps the LED safe and working well. LED drivers give a steady current or voltage. This helps LED tubes last longer. Regular ballasts cannot power LEDs. Always use the right LED driver for your LED tubes.

Note: LED drivers protect your LED tubes from power surges and help them shine bright for many years.

Ballast Functions

Current Control

Ballast Lights help keep your lights safe and steady. Ballasts control how much electricity goes to your tubes. Too much current can make lamps get too hot or break. Ballasts stop this from happening.
Here is what ballasts do with current:

• Ballasts keep the electrical current at a safe level. This stops overheating and electrical problems.

• They help keep the temperature low, so fires are less likely.

• Ballasts help fluorescent tubes last longer by keeping them safe.

When you turn on a light, the ballast limits the current. This keeps your tubes from getting damaged. Ballasts also control heat. You avoid fire risks because the ballast keeps things cool. Ballasts help your lights last longer by making sure they work safely.

Tip: If your lights burn out fast or get very hot, check your ballast. It might not be working right.

Safety

Ballast Lights have safety features to protect you and your home. These features help stop electrical dangers and keep your lights working well.
Here is a table with common safety features in ballasts:

You get help from these safety features every time you use your lights. Ballasts protect you from voltage spikes, wiring mistakes, and overheating. You stay safe, and your lights work well.

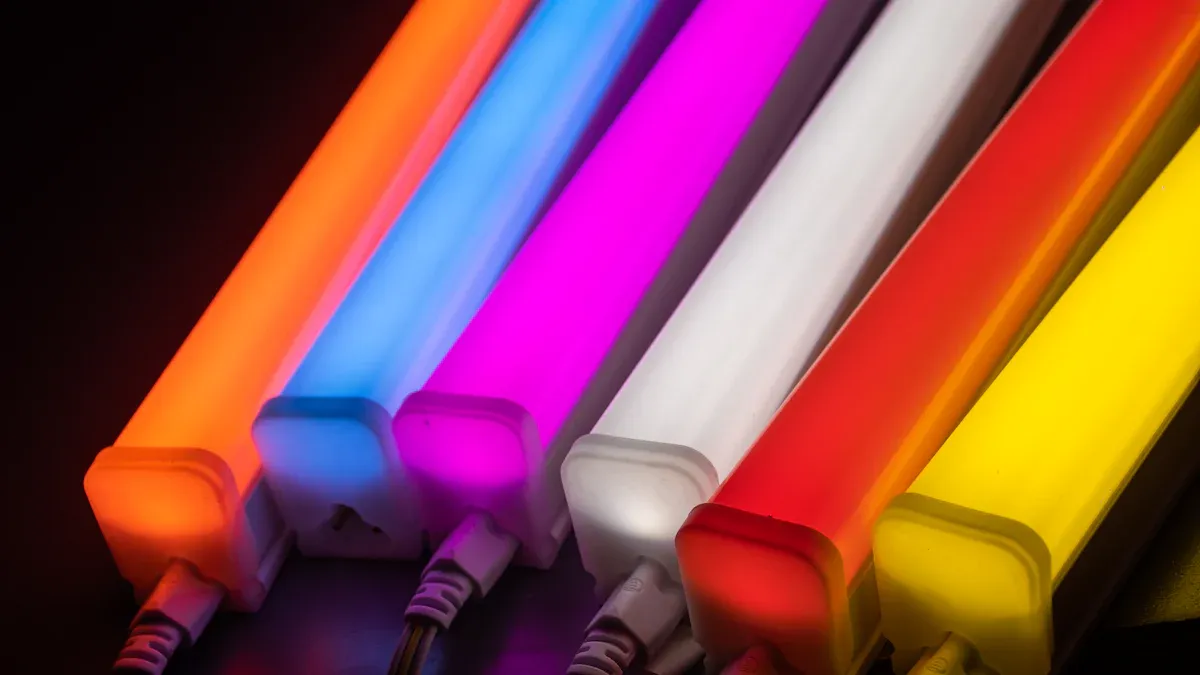

LED Tube Types

Type A (Ballast Compatible)

Type A LED tubes are simple to use. You do not need to change any wires. Just take out the old tube and put in the new one. These tubes work with electronic ballasts. You can install them fast and with little trouble.

• Type A tubes go right into fixtures with electronic ballasts.

• You do not need tools or extra steps to put them in.

• Magnetic ballasts will not work with Type A tubes.

• If your ballast stops working, your LED tube will not turn on.

Tip: Always check what kind of ballast you have before you buy Type A tubes. If you have a magnetic ballast, you need another kind of LED tube.

Type B (Ballast Bypass)

Type B LED tubes do not need a ballast. You must take out or skip the ballast when you put them in. This type lets you control the wires yourself.

1. Turn off the power at the breaker first.

2. Take off the cover to get to the ballast.

3. Cut the hot and neutral wires near the ballast.

4. Connect the wires straight to the lamp holders.

Before you start, look for damage or water in the fixture. Keep kids away from where you are working. Do not put these tubes in places with heavy things that could fall.

Note: Type B tubes need careful work to put in. You must follow safety rules so you do not get hurt by electricity.

Type AB (Hybrid)

Hybrid LED tubes give you more choices. You can use them with a working ballast or connect them right to the power. These tubes work as Type A or Type B.

• Look for tubes that say "Type A+B" or "Universal."

• Hybrid tubes work with both electronic and magnetic ballasts.

• If the ballast breaks, you can wire the tube to the power.

• You can find hybrid tubes in many sizes and colors.

You get more ways to use hybrid tubes. You can change your lights when you are ready.

Type C (External Driver)

Type C LED tubes use an external driver. This setup is good for big jobs.

Type C tubes are best if you want special lighting and top safety. You get more control and it is easier to fix problems.

Compatibility Guide

Identifying Your Ballast

You need to know what kind of ballast you have before you buy new LED tubes. Ballast Lights come in different types, and each type works with certain LED tubes. You can use simple methods to find out which ballast is in your fixture.

1. Use Your Smartphone Camera
   Stand close to the light and point your smartphone camera at it. If you see flickering stripes on your screen, you have a magnetic ballast. If you do not see flickering, you likely have an electronic ballast.

2. Look for Starters
   Turn on your fluorescent light and check for a small glowing starter near the tube. A glowing starter means you have a magnetic ballast. If you do not see a starter, you probably have an electronic ballast.

3. Check the Label
   Open the fixture and look for a label on the ballast. The label often shows the type, model, and voltage. You can use this information to match your ballast with the right LED tube.

Tip: Write down the details from the label. You may need them when you shop for LED tubes or ask for help.

Checking LED Tube Compatibility

You must make sure your LED tube matches your ballast. Not all LED tubes work with every ballast. Some tubes need you to bypass or remove the ballast, which can make installation harder.

• Read the LED tube packaging. It should say if the tube is "ballast compatible," "ballast bypass," or "hybrid."

• Use manufacturer charts. Many brands offer charts that show which ballasts work with their LED tubes. Check these charts before you buy.

• Ask for help if you are not sure. You can call the manufacturer or talk to a lighting expert.

Here is a table that shows common compatibility issues you may face:

Note: If you install an LED tube that does not match your ballast, the light may not work or could get damaged.

You may also notice that some LED tubes do not turn on or flicker. This often means the ballast and tube are not compatible. Always check the instructions and use the right tube for your fixture.

• You can avoid problems by matching the LED tube type with your ballast.

• If you need to bypass the ballast, follow safety steps and wiring guides.

• If you want dimming features, look for LED tubes that support dimming and check if your ballast allows it.

⚡ Not all LED tubes work with every ballast type. You may need to bypass or replace the ballast, which can make installation more complex.

You can save time and money by checking compatibility before you start. You will get better performance and safer lighting in your home or business.

Installation Steps

Type A Installation

You can install Type A LED tubes quickly. These tubes work with your existing electronic ballast. Follow these steps for a safe installation:

1. Turn off the power to the light fixture.

2. Remove the diffuser if your fixture has one.

3. Take out the old fluorescent tube.

4. Insert the new Type A LED tube into the socket.

5. Replace the diffuser.

6. Switch the power back on.

⚡ Always check that your ballast is working before you install the LED tube. If the tube does not light up, the ballast may need replacing.

Type B Installation

Type B LED tubes need you to bypass the ballast. You must change the wiring. Here is a table to help you avoid common mistakes:

You should use a ballast bypass LED to make wiring easier. Avoid using shunted tombstones. If you use plug-n-play LEDs, make sure the ballast works.

• You can wire the LED tube directly to the 120 VAC line voltage.

• Always follow color codes when removing the ballast.

🔧 Never leave the old ballast in place. Incorrect wiring can cause tube failure or electric shock.

Type AB Installation

Type AB (hybrid) LED tubes give you more options. You can use them with a ballast or wire them directly. Keep these safety tips in mind:

• Do not install in areas with heavy loads.

• Keep away from children.

• Never cover ground contact.

• Inspect the fixture for damage or water.

• Handle the fixture carefully if it feels hot.

• Do not pull on cables or touch the LED lens.

👀 Always check for signs of overheating, smoke, or cracking noises before you start.

Type C Installation

Type C LED tubes use an external driver. You must use drivers made for these tubes. Connect the low-voltage output of the driver to the sockets. Do not use line voltage. Only use drivers from the same manufacturer as your LED tube. This setup helps your lights work safely and last longer.

💡 Using the wrong driver can cause poor performance or damage your LED tube. Always follow the instructions from the manufacturer.

Troubleshooting

Flickering Issues

Sometimes, new LED tubes flicker after you install them. Flickering makes lights hard to use and can hurt the tubes. Many things can cause flickering. Here is a table that lists common causes:

Tip: If your lights flicker, check the wires first. Make sure all connections are tight and safe.

Ballast Problems

Ballast problems can stop LED tubes from working. You can check for problems with easy steps:

• Use a multimeter to check voltage and resistance.

• Look for burnt marks or a strong smell to spot a bad ballast.

• See if the ballast feels hot or got wet.

• Make sure the ballast works in the right temperature range.

To test the ballast, take off the cover and set your multimeter to the right voltage. If the number matches the label, the ballast gets power. If not, there may be a wiring or power problem.

If your LED tube does not light up, the ballast might be broken or not the right kind. Try changing the ballast or use a tube that does not need one.

Safety Tips

Safety is very important when you work with lights. Follow these tips to stay safe:

• Turn off power at the breaker before you start.

• Use a voltage tester to check that power is off.

• Wear gloves and goggles to protect yourself from shocks and flying bits.

• Throw away old ballasts the right way because they might have harmful stuff.

• Keep a first aid kit close in case of accidents.

• Tell others you are working with electricity.

• Ask a licensed electrician for help if you are not sure.

⚡ Never touch wires or tubes until you know the power is off. Safety steps help stop accidents and make your lighting upgrade go well.

Knowing how Ballast Lights work with LED tubes helps you save money. It also keeps your lights safe. Always look at your light fixture and tube before you upgrade. Plug-and-play tubes will not work with magnetic ballasts. Ballast-bypass tubes need you to take out the ballast. Use guides from the maker to match tubes and ballasts. If the job is hard, get a licensed electrician who knows safety rules. Pick the LED tube that fits your needs. You will get brighter and safer lights at home or work.

FAQ

What happens if you use an LED tube with the wrong ballast?

If you use an LED tube with the wrong ballast, the light may not turn on or could flicker. You risk damaging the tube or the fixture. Always check compatibility before you install.

Can you install LED tubes without removing the ballast?

You can install Type A or hybrid LED tubes without removing the ballast. These tubes work with electronic ballasts. For Type B tubes, you must bypass or remove the ballast.

How do you know which LED tube fits your fixture?

Check the label on your fixture or ballast. Read the LED tube packaging for compatibility. Use manufacturer charts to match your ballast type with the right LED tube.

Do LED tubes save more energy than fluorescent tubes?

Yes, LED tubes use less electricity and produce less heat. You save money on energy bills. LEDs also last longer, so you replace them less often.

Is it safe to replace fluorescent tubes with LED tubes yourself?

You can replace tubes yourself if you follow safety steps. Turn off the power, use gloves, and read instructions. If you feel unsure, ask a licensed electrician for help.
