Choose LED Canopy Lights for Covered Parking Areas

kingwe-star

·June 16, 2025

·10 min read

When you choose led canopy lights for covered parking areas, you improve safety and save energy. Well-lit canopy spaces help prevent 70% of hit-and-runs and reduce crime by removing shadows where criminals hide.

Performance Category	Luminaire Efficacy Rating (lm/W)	Annual Energy Cost (USD)
Best Available LED	139	25
Required Model	126	28
Less Efficient Model	65	56

Choose led canopy lights that offer bright, even light, long lifespan, and strong security for your outdoor or garage spaces. Visit Home, About Us, or Product pages for more on Led Light solutions.

Key Takeaways

Choose LED canopy lights with the right wattage and lumen output to match your parking area size and brightness needs for better safety and visibility.
Select lights with a color temperature between 4000K and 5000K to provide bright, natural white light that improves visibility and security.
Look for LED fixtures with IP65 or higher ratings and vandal-resistant features to ensure durability against weather and impacts.
Use advanced sensors and controls like motion and photocell sensors to save energy and maintain proper lighting only when needed.
Check for certifications and warranties to ensure safety, quality, and long-term reliability, and explore rebate programs to reduce costs.

Selection Criteria

Wattage & Lumen Output

When you select led canopy lights for your parking area, you need to match the wattage and lumen output to your space. The right wattage ensures enough illumination for safety and visibility. Most parking areas use led canopy fixtures with wattages between 25 and 150 watts. This range gives you a lumen output from about 2,900 to 21,000 lumens. You should choose the wattage based on the size of your canopy, the mounting height, and how bright you want the area to be. Higher wattage and lumens mean more coverage and brighter light, which helps prevent dark spots and improves security.

Parameter	Range/Value
Wattage Range	25 watts to 150 watts
Lumen Output	2,900 lumens to 21,000 lumens
Application	Parking lots, commercial canopies

Modern led canopy lights also offer high efficiency, sometimes reaching up to 160 lumens per watt. This means you get more light while using less energy, which lowers your energy costs and supports energy efficiency goals. You can also find fixtures with selectable wattage, letting you adjust the brightness as needed.

Color Temperature

The color temperature of your led canopy lights affects how the area looks and feels. For parking areas, a color temperature between 4000K and 5000K works best. This range gives you a bright, natural white light that improves visibility and makes it easier to see people, vehicles, and obstacles. A color rendering index (CRI) of 70 or higher ensures accurate color perception, which is important for safety and navigation.

4000K: Neutral white, good for general illumination.
5000K: Mimics daylight, excellent for visibility and security.

You should avoid warmer color temperatures like 2700K or 3000K, as they create a cozy feeling better suited for indoor spaces. Cooler temperatures, such as 5000K, help reduce eye strain and provide superior light quality for outdoor parking canopies.

Sensors & Controls

Advanced sensors and controls make led canopy lights smarter and more efficient. You can choose fixtures with motion sensors, photocell sensors, or both. Motion sensors turn the lights on when someone enters the area, saving energy when the space is empty. Photocell sensors automatically adjust the light based on daylight, so your canopy stays well-lit only when needed.

Tip: Wireless controls let you manage multiple led canopy fixtures from one place. You can set schedules, create lighting zones, and monitor energy use. This flexibility helps you save money and maintain excellent illumination at all times.

Some systems even connect to building management systems, making it easy to control all your lighting from a central dashboard. These features support energy efficiency and help you meet local energy codes.

IP & Vandal Ratings

Durability matters for outdoor led canopy lights. You want fixtures that can handle dust, rain, and even vandalism. Look for an IP65 rating or higher. IP65 means the canopy fixture is dust-tight and protected against water jets, making it suitable for most outdoor and covered parking areas. For places with heavy rain or risk of flooding, IP66 or IP67 ratings offer even more protection.

Rating Type	Rating Value	What It Means
IP65	Dust-tight, water jets	Good for outdoor canopies
IP66	Strong water jets	High-moisture environments
IK10	Vandal resistant	Withstands strong impacts

Vandal-proof ratings like IK10 show that the led canopy fixtures can resist impacts and tampering. This keeps your lights working and your parking area safe.

Certifications & Warranty

Certifications prove that your led canopy lights meet industry standards for safety, performance, and efficiency. Look for products with DLC, UL, ETL, FCC, and RoHS certifications. DLC certification means your lights are energy efficient and reliable for commercial use. UL and ETL show the fixtures meet strict safety standards. FCC ensures the lights do not interfere with other electronics. RoHS means the product does not contain hazardous substances.

Product Name	Warranty Duration	Certifications
Sunco 60W LED Canopy Light	5 years	ETL, DLC 5.1 Premium, UL, FCC, RoHS
E-Conolight C-Lite Series	5 years	cULus, DLC Premium, RoHS

A long lifespan is important for reducing maintenance. Many led canopy lights offer warranties of five years or more. This shows the manufacturer stands behind the product. When you choose certified and warrantied led canopy fixtures, you ensure compliance, reduce costs, and get reliable illumination for years.

Note: Many utility companies offer rebates for installing energy-efficient led canopy lights. Check for available programs to save even more on your upgrade.

Compare LED Canopy Lights

Performance & Efficiency

When you compare led canopy lights, focus on how each model performs in real-world conditions. Look at the lumens per watt to see how much light you get for the energy used. High-quality led canopy lights often reach up to 160 lumens per watt, giving you bright coverage with less power. You should check for certifications like UL and IP65. These show that the canopy fixture meets safety and durability standards.

Efficiency Rating / Certification	Description	Impact on LED Canopy Light Performance
UL Certification	Meets safety and quality standards	Ensures safety and compliance
IP65+ Rating	Protects against dust and moisture	Improves durability and reliability

You also want to consider the lifespan. Many led canopy lights last from 50,000 to 150,000 hours. This long life means you will spend less time and money on replacements.

Product Reviews

Reading product reviews helps you understand how led canopy lights work in different parking areas. Users often share details about brightness, ease of installation, and how well the light covers the canopy. Look for comments about energy savings and reliability. If many people mention that a canopy fixture stays bright and needs little maintenance, you can trust it will perform well for you.

Tip: Choose led canopy lights with positive reviews about both performance and customer support. Good support makes it easier to solve any issues quickly.

Cost & Rebates

You should compare the total cost of led canopy lights, not just the price tag. Calculate your current lighting costs and estimate how much you will save by switching to led. Many businesses see up to 75% lower energy costs after installing led canopy lights. For example, if you spend $1,000 a year on old lights, you could save $750 each year with led. Over ten years, this adds up to $7,500 in savings, not counting lower maintenance costs.

Cost Factor	LED Canopy Lights Benefit	Quantitative Comparison / Impact
Energy Savings	Up to 75% reduction in energy costs	Focused light reduces wasted energy
Maintenance Costs	Lower due to longer lifespan and durability	Fewer failures than older lights
Lifespan	50,000 to 100,000+ hours	Less frequent replacements
Warranty	5-10 years	Reduces risk and costs
ROI	Faster payback despite higher upfront cost	Savings offset initial expense

Many utility companies offer rebates for led canopy lights. Some programs cover 25-50% of the purchase price or give a fixed amount per fixture. These rebates make led canopy lights even more affordable and help you achieve long-term energy savings. Always check if your chosen canopy light is on the approved list for rebates.

LED Canopy Fixtures & Design

Fixture Types

You can choose from several types of led canopy fixtures for your parking area. The most common shapes are round and square. Round canopy fixtures often provide focused downward illumination, which works well for small or medium spaces. Square fixtures cover larger areas and help create uniform light distribution. You can install these led canopy fixtures on ceilings or flat surfaces. Most led canopy fixtures fit low to medium mounting heights, making them ideal for parking garages and outdoor covered spaces. Proper installation ensures the canopy fixture stays secure and delivers reliable illumination.

Placement & Spacing

The way you place and space your led canopy fixtures affects how well your parking area is lit. A good rule is to space each canopy fixture about half the height of the ceiling apart. This layout helps prevent dark spots and keeps the illumination even. Technical guidelines from gas station lighting standards also recommend arranging fixtures to meet both horizontal and vertical illumination needs. You should always check the recommended wattage and optics for your specific canopy.

Lighting Strategy	Light Uniformity (CV)	Total Light Absorption Increase	Optimal Placement Details
Top Lighting	31% (parallel rows)	Baseline	Lamps centered above double rows
Intra-canopy Lighting	36% (parallel rows)	+8%	Lamps at 108 and 153 cm heights; avoid too high or too low
Combined Intra-canopy + Top	26% (best)	+4%	About 50% intra-canopy and 50% top lighting; reduces variation across all canopy layers

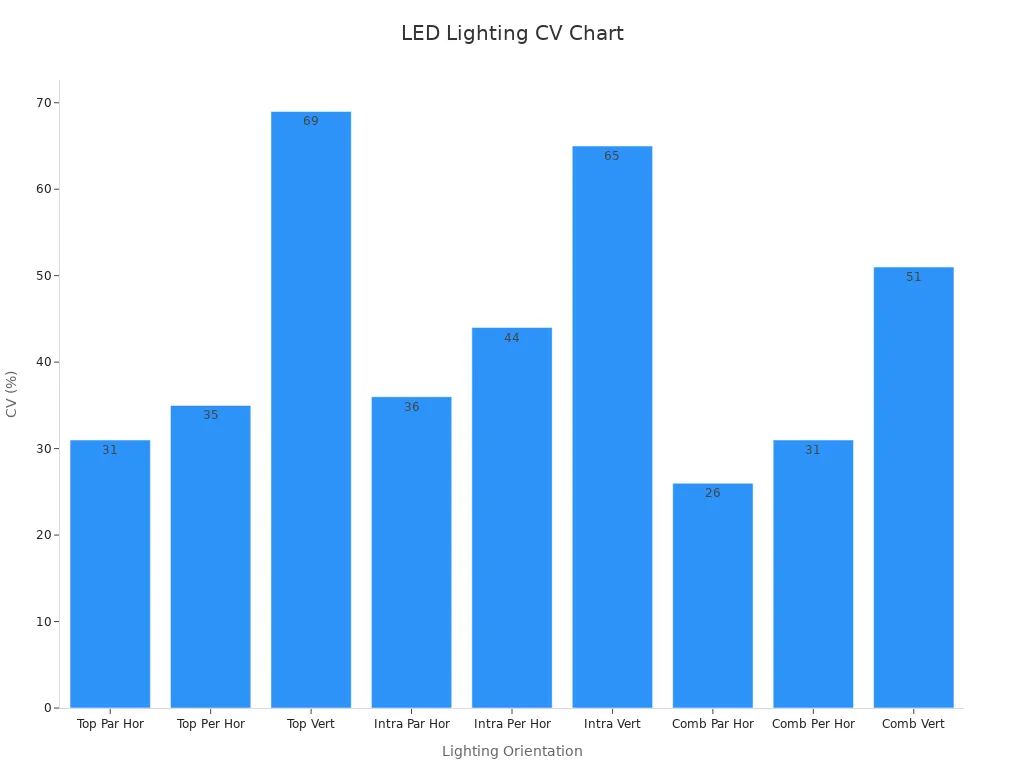

Bar chart comparing light uniformity across LED canopy lighting strategies

Uniformity & Glare

Uniform illumination in your parking canopy improves safety and comfort. Research shows that a uniformity ratio of 3:1 (maximum-to-minimum illuminance) reduces shadows and blind spots. You can achieve this by using wide-beam led fixtures (100-120 degrees) and arranging them for even coverage.

Higher uniformity in illumination makes people feel safer than just using brighter lights.
A 2:1 uniformity ratio at lower light levels can match the safety of much brighter but less uniform setups.
Uniform lighting reduces glare and light pollution, which helps drivers and pedestrians see clearly.
Excellent glare control in led canopy fixtures lowers the risk of accidents and improves visibility.
Studies show a 25% drop in vehicle collisions in parking areas with uniform illumination.

You should always aim for uniform light distribution and excellent glare control. This approach reduces glare and light pollution, making your outdoor canopy safer and more comfortable for everyone.

How to Choose LED Canopy Lights

Assess Needs

Start by looking at your parking area. Measure the size and check the ceiling height. Count how many cars the space holds. Notice any dark spots or areas that need more light. Think about the weather in your area. Covered parking areas need led canopy lights that can handle rain, dust, and possible impacts. Look for an easy installation process so you can set up the lights quickly and safely.

Tip: Write down your main goals. Do you want to save energy, improve safety, or lower maintenance costs? Clear goals help you choose led canopy lights that fit your needs.

Shortlist Options

Next, compare different led canopy lights. Make a list of products that match your needs. Focus on these features:

Lumen output and wattage: Balance brightness and energy use. More lumens mean brighter light, but higher wattage does not always mean better performance.
Energy efficiency: Look for lights with 100-130 lumens per watt. This means you get more light for less energy.
Durability: Choose canopy fixtures with IP65 or higher ratings. These resist dust and water, making them reliable for outdoor use.
Color temperature: Pick cooler tones (5000K-6000K) for clear visibility in parking areas.
Certifications: Check for UL, DLC, or Energy Star labels. These show the lights meet safety and quality standards.
Lifespan: Select led canopy lights that last 50,000 hours or more.

Final Decision

Before you buy, check compliance and safety. Make sure your led canopy lights have these:

UL, CE, or CSA certifications for safety in hazardous places like gas stations.
IP65 or higher for weather resistance.
Uniform, bright illumination to reduce shadows and prevent accidents.
Warranty and rebate options for better value.

You can use ROI calculators to compare costs and savings. If you feel unsure, ask a lighting professional or request a quote. When you choose led canopy lights with the right features, you create a safer, brighter, and more cost-effective parking canopy.

Choosing the right LED canopy lights starts with understanding your parking area’s needs. You compare wattage, lumens, durability, and certifications. You balance safety, performance, and cost for the best results.

For confident selection, follow each step in this guide.

Consult a lighting expert if you need help.
Explore rebate programs to save money.
You create a safer, brighter parking area when you make informed choices.

FAQ

What is the best color temperature for parking canopy lights?

You should choose 4000K to 5000K for parking areas. This range gives you bright, clear light. It helps people see better and makes the area feel safer.

How do I know if a canopy light is weatherproof?

Look for an IP65 or higher rating. This rating means the light can handle dust and water. You can use these lights outdoors without worry.

Can LED canopy lights save me money?

Yes! LED canopy lights use less energy than old lights. You pay less for electricity. Many last longer, so you spend less on replacements and repairs.

Do I need a professional to install LED canopy lights?

You can install some LED canopy lights yourself if you follow the instructions. For large projects or complex wiring, you should hire a licensed electrician.

Are rebates available for LED canopy lights?

Many utility companies offer rebates for energy-efficient LED lights. Check with your local provider. You can save money on your purchase with these programs.
