How to Connect LED Lamps: Installation Guide for Different Fixtures — Image Source: pexels

Properly installing LED lamps helps them work well and last longer. Using LED light improves lighting and lowers energy use. These products fit many fixtures like ceiling lights, wall lights, and solar lights, making them a great choice for homes and businesses.

LED lights save a lot of energy. For example:

In 2020, 47% of U.S. homes used LED bulbs for most or all indoor lighting. This was a big increase from just 4% in 2015.
LED lamps use at least 75% less energy and last up to 25 times longer than old incandescent bulbs.

Switching to LED lights cuts utility costs and helps the environment. Their strength and flexibility make them a smart choice for modern lighting, especially when you connect LED lamps in various settings.

Key Takeaways

LED lamps use less energy and last longer than old bulbs. This helps save money and is better for the planet.
Pick the right LED lamp for your needs. Use A19 for normal lighting or LED strips for decorating.
Always turn off the power before putting in LED lamps. Use the right tools to stay safe and work well.
Clean LED lights often to keep them bright. This also stops them from getting too hot, which can make them wear out faster.
Use surge protectors and follow the maker's instructions. This helps your LED lamps last longer and work better.

Types of LED Lamps and Their Benefits

Common Types of LED Lamps

LED lamps come in many forms, each for specific uses. Picking the right one gives the best lighting for your needs. Here's a table showing common LED lamps and where they are used:

Type of LED Lamp	Where It's Used
LED highbay lights	Big spaces like warehouses and factories.
LED downlights	Workshops, production areas, and large machines.
LED floodlights	Outdoor places like sports fields and parking lots.
LED explosion-proof lights	Dangerous areas needing safe lighting.
LED linear lights	Long spaces like shelves and aisles.
LED panel lights	Offices, malls, and hospitals for even lighting.
LED track lights	Adjustable lights for galleries, exhibits, and hotels.
LED spotlights	Highlighting spots in malls, museums, and exhibits.
LED pendant lights	Mood lighting in bars, restaurants, and hotels.
LED strips	Decorative lights in malls, hotels, and restaurants.
Underground/inground lights	Directional lights in malls and parking areas.
Underwater lights	Decoration in fountains and pools.
Courtyard lights	Parks and residential areas.
Wall washer lights	Lighting up big buildings.

For homes, A19 LED bulbs are great for general lighting. LED strip lights work well for decoration. For focused light, try MR16 or PAR LED bulbs.

Advantages of Using LED Lamps

LED lamps have many benefits over old-style lights. They save energy by turning up to 95% of power into light. This lowers energy use by 90% compared to old bulbs. They also last much longer, up to 50,000 hours—25 times more than traditional bulbs.

Using LED lights helps the planet too. Making LEDs uses less than 2% of the energy needed for old bulbs. If everyone used LEDs, global electricity use for lighting could drop by 50%. These features make LEDs a smart, eco-friendly choice for modern lighting.

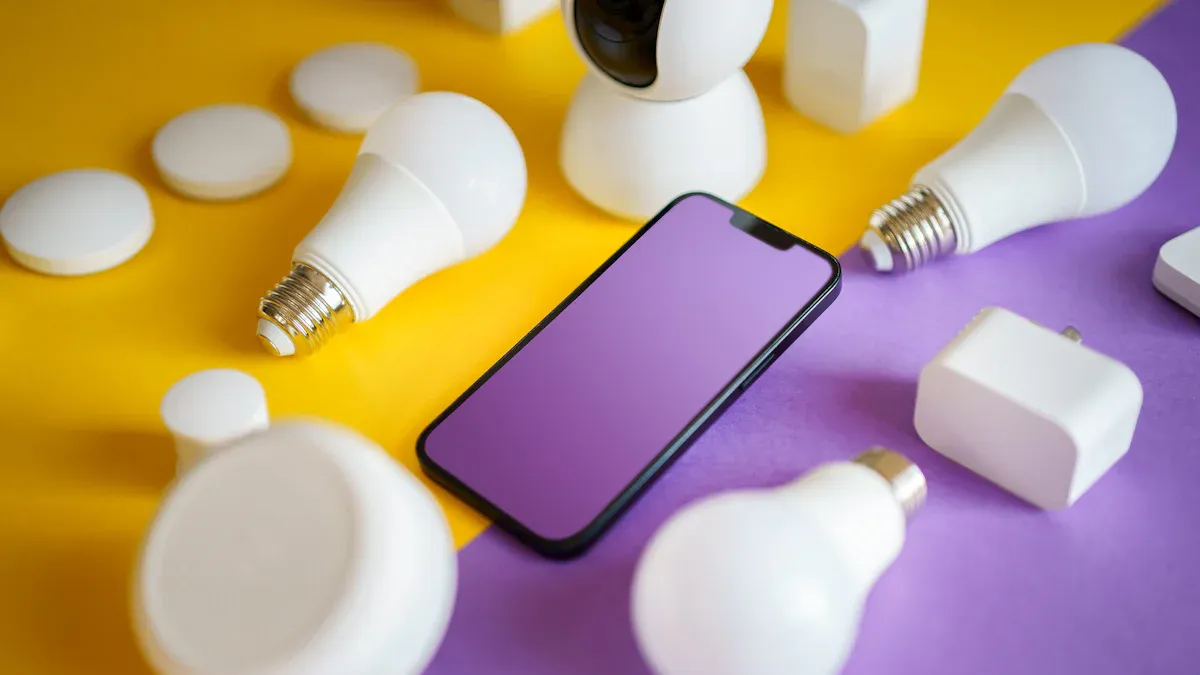

💡 Tip: Try smart LED lights for more ease. You can control them remotely and change their effects to suit your mood or needs.

Pre-Installation Basics for Setting Up LED Lamps

Getting ready before installing LED lamps makes the job easier. This part explains the tools you need, safety tips, and how to check if the lamp fits your fixture.

Tools and Supplies You’ll Need

Having the right tools saves time and effort. Here’s what you’ll need:

Flathead and Phillips screwdrivers
Wire cutters and strippers
A voltage tester
Electrical tape
LED lamps that fit your fixture
A ladder for ceiling lights

For LED strip lights, you might also need connectors, adhesive tape, and a power source. Gather these items first to avoid delays during installation.

Important Safety Tips

Safety is key when working with electrical items. Follow these rules to stay safe:

Standard	What It Means
UL 8750	Makes sure LED equipment is safe to use.
UL 1993	Sets safety rules for LED lamps sold in the U.S.
AS/NZS 60598	Lists how luminaires should be built and labeled.
AS/NZS 3000:2007	Stops fire risks when installing recessed lights.
AS/NZS 5110:2011	Ensures lights meet insulation and material safety rules.

Always turn off the power at the breaker box before starting. Use a voltage tester to check wires for electricity. Never touch live wires or work in wet areas. These steps keep you safe while installing.

Checking If the Lamp Fits

Not all LED lamps work with every fixture. Check these things to avoid problems:

Make sure the bulb fits without blocking light.
Check if the fixture is enclosed or recessed, as this affects heat.
Confirm the bulb can handle the fixture’s heat levels.
Don’t mix LED and old bulbs unless a pro says it’s okay.
Pick a color temperature that fits the room, like warm white for cozy spaces or cool white for work areas.
Use dimmable bulbs only with dimmer switches.

Test everything together before installing to ensure it works well. If unsure, ask an electrician or read the fixture’s manual. Preparing well helps you set up LED lamps easily and enjoy their benefits.

Step-by-Step Guide to Connect LED Lamps

Installing LED Bulbs

Putting in LED bulbs is easy and quick. Follow these steps:

Turn off the power: Find the breaker box. Switch off power to the area. This keeps you safe from shocks.
Remove the old bulb: Unscrew the old bulb gently. If it’s hot, wait for it to cool.
Attach the new LED bulb: Screw the LED bulb into the socket. Make sure it fits well but don’t tighten too much.
Test the lights: Turn the power back on. Check if the bulb works properly.

💡 Tip: Pick LED bulbs with the right color for your room. Warm white feels cozy, while cool white is better for workspaces.

A big warehouse switched from metal halide lights to LED vapor-tight fixtures. This cut energy costs by 60% and made lighting better. Workers had fewer accidents and worked better because of improved visibility. This shows how LEDs can make a big difference.

Setting Up LED Strips

LED strips are great for decoration or accent lighting. Here’s how to set them up:

Plan the layout: Measure the area for the strips. Cut the strip to the size you need if it’s adjustable.
Prepare the surface: Clean the area so the adhesive sticks well.
Connect the power supply: Attach the strip to its power source. Use connectors if needed.
Secure the strip: Peel off the adhesive backing. Stick the strip to the surface and press firmly.
Test the lights: Plug in the power and turn it on. Check if the lights work.

⚠️ Note: Always use the right power supply to protect the LED strip.

For more help, check out LED Strip Lights Installation Guide.

Replacing Fluorescent Tubes with LED Tubes

Switching to LED tubes saves energy and improves light quality. Follow these steps:

Turn off the power: Shut off power at the breaker box to stay safe.
Remove the old tube: Gently rotate and slide out the fluorescent tube.
Modify the fixture (if needed): Some LED tubes need the ballast removed. Follow the instructions for rewiring.
Install the LED tube: Place the LED tube into the fixture. Make sure it’s secure.
Test the lights: Turn the power back on. Check if the LED tube lights up.

🔧 Pro Tip: If rewiring seems hard, ask an electrician or use plug-and-play LED tubes that don’t need changes.

For more details, visit LED Tubes Installation Guide.

By following these steps, you can easily connect LED lamps to different fixtures. Whether it’s bulbs, strips, or tubes, proper setup ensures they work well and last long.

Installing LED Downlights

LED downlights give bright light and a modern style. Setting them up needs planning and care. Follow these steps to install them easily.

Prepare the Area
Turn off power at the breaker box first. Use a voltage tester to ensure no electricity is flowing. Clear the area for safety and easy work.
Measure and Mark
Measure the ceiling where lights will go. Mark the spots with a pencil. Keep the spacing even for a neat look.
Cut the Holes
Use a hole saw or cutter to make openings. Match the hole size to the downlight’s manual instructions.
Connect the Wiring
Find the junction box and connect the wires. Match live, neutral, and ground wires correctly. Secure connections with wire connectors.
⚠️ Safety Note: Check all wiring twice. Wrong connections can be dangerous.
Install the Downlights
Push the LED downlight into the hole. Use the provided clips or springs to secure it. Make sure it fits flat against the ceiling.
Test the Lights
Turn the power back on and test the lights. Ensure they shine properly without flickering.

💡 Tip: Pick dimmable LED downlights for adjustable brightness. Use them with dimmer switches for better control.

Adding LED downlights improves your space with great lighting. Follow these steps to safely connect LED lamps to your fixtures.

Troubleshooting Problems When You Connect LED Lamps

Even if installed correctly, LED lamps might have problems. Knowing common issues and fixes helps keep your lights working well.

LED Lamp Won’t Turn On

If an LED lamp doesn’t light up, try these steps:

Check the Power Supply:
Make sure the breaker is on. Use a voltage tester to see if power is reaching the fixture.
Look at the Wiring:
Loose or broken wires can stop the lamp from working. Turn off the power and check the connections. Fix or replace any damaged wires.
Test the LED Lamp:
Put the lamp in another fixture. If it works there, the problem is with the original fixture.
Check the LED Driver:
The LED driver controls power to the lamp. If it’s broken, replace it.

⚠️ Note: Power surges can harm LED drivers. Use surge protectors to avoid this.

Follow these steps to fix power problems quickly.

Flickering or Dim Lights

Flickering or dim lights can be annoying and show deeper issues. Here’s what to check:

Wrong Dimmer Switch:
Some LED lamps need special dimmers. Using the wrong one can cause flickering. Replace it with a compatible dimmer.
Unstable Power Supply:
Voltage changes can make lights flicker. Check your electrical system and fix any power issues.
Load Problems:
LED lamps use less power than old bulbs. If the dimmer isn’t made for low power, flickering can happen. Use a dimmer for low-wattage LEDs.
Worn-Out LED Chips:
Overheating or too much current can damage LED chips. This causes flickering or dim light. Keep the lamp cool to make it last longer.

💡 Tip: Test the lamp in another fixture. This helps you find out if the problem is with the lamp or the wiring.

Dimming Issues

Dimming problems happen when LED lamps and dimmers don’t match. Here’s how to fix them:

Problem	Cause	Solution
Flickering	Wrong dimmer, power issues, load mismatch	Use a compatible dimmer, fix power supply, check wiring
Humming or Buzzing	Dimmer issues, poor compatibility	Get a better dimmer, use high-quality bulbs, adjust dimmer settings
Small Dimming Range	Dimmer type, LED driver design	Use the right dimmer, pick bulbs with better dimming range, add a bypass device
Uneven Dimming Across Fixtures	Different LED drivers, power supply issues	Use matching bulbs, balance the load, check connections
Bulbs Not Lighting at Low Settings	Dimmer gives too little voltage	Adjust dimmer, replace it, or use different bulbs
Shorter Bulb Lifespan	Wrong dimmer, extreme dimming, power surges	Use compatible dimmers, avoid extreme dimming, install surge protectors

To fix dimming problems, always check if your LED lamps and dimmers are compatible. Use dimmers made for LEDs to get smooth dimming.

⚠️ Safety Reminder: Turn off the power before changing dimmers or fixing wiring to stay safe.

By solving these problems, you can enjoy bright and reliable lighting with your LED lamps.

Overheating or Short Lifespan

Overheating and short lifespan are common issues with LED lamps. These problems often happen when the lamps are not used or installed properly. They can lower the lamp's efficiency and cause frequent replacements. Knowing the causes and fixes can help you avoid these problems and make your LED lamps last longer.

Why LED Lamps Overheat

LED lamps are made to stay cool, but some things can cause overheating. Here are the main reasons:

Poor Ventilation: Closed fixtures trap heat and block airflow, raising the lamp's temperature.
Wrong Wattage: Using a bulb with too much wattage for the fixture creates extra heat.
Broken Drivers: LED drivers control power. If damaged, they can cause overheating.
Hot Surroundings: High room temperatures or direct sunlight can make the lamp too hot.
Dust Build-Up: Dirt on the lamp or fixture stops heat from escaping.

⚠️ Alert: Overheating can harm LED chips, making them dim and shortening their life. Fix heat problems quickly.

Ways to Stop Overheating

You can follow simple steps to keep LED lamps from overheating and lasting longer:

Pick Open Fixtures: Use fixtures that let air flow around the lamp. Avoid closed ones unless the bulb is made for them.
Use Correct Wattage: Check the fixture's wattage limit and pick bulbs that match.
Check Drivers: Look at the LED driver often for damage. Replace it if needed.
Cool the Room: Keep the area cool and don’t place lamps near heat sources like stoves.
Clean Regularly: Dust the lamp and fixture to help heat escape properly.

💡 Tip: Choose LED lamps with heat sinks. These parts help spread heat and keep the lamp cool.

Why LED Lamps Have Short Lifespans

LED lamps are long-lasting, but wrong use can make them fail early. Here are common reasons:

Cause	What Happens
Power Surges	Sudden voltage spikes damage LED chips and drivers.
Overheating	Too much heat lowers the lamp's efficiency and life.
Wrong Fixtures	Using lamps in unsuitable fixtures causes early failure.
Frequent Switching	Turning lamps on and off too often wears them out.
Low-Quality Lamps	Cheap LEDs fail faster due to poor materials.

Tips to Make LED Lamps Last Longer

Follow these tips to keep your LED lamps working for a long time:

Add Surge Protectors: Protect lamps from sudden voltage spikes.
Limit Switching: Turn lamps on only when needed to avoid wear.
Buy Good Lamps: Choose trusted brands with good reviews and certifications.
Use Proper Fixtures: Make sure the lamp fits the fixture’s requirements.
Fix Heat Issues: Keep lamps cool by solving overheating problems quickly.

🔧 Pro Tip: Buy LED lamps with long warranties. This ensures quality and support if problems occur.

By fixing overheating and lifespan problems, you can enjoy your LED lamps for years. Proper setup, regular care, and picking the right products will keep your lighting efficient and long-lasting.

Maintenance Tips for LED Lamps

Cleaning and Dusting Fixtures

Keeping LED fixtures clean helps them work better and last longer. Dust and dirt can block light and trap heat, making the lamp less effective. Follow these simple tips to keep fixtures clean:

Wipe the surface with a soft cloth or sponge. Don’t use harsh cleaners that could scratch or damage the finish.
Check seals and lenses for cracks or damage. Broken parts can cause electrical problems.
Set up a cleaning routine based on how often the fixture is used and the environment. For example, clean dusty fixtures every 6-12 months.
For industrial or commercial lights, inspect electrical parts during cleaning to catch wear early.

💡 Tip: Regular cleaning improves brightness and lowers safety risks in your space.

Preventing Overheating

Overheating can make LED lamps wear out faster and work less efficiently. You can avoid this by following these steps:

Follow the manufacturer’s instructions when installing LED lamps.
Keep lamps away from hot areas like stoves or direct sunlight.
Use open fixtures that allow air to flow freely. Closed spaces trap heat and increase overheating risks.

When LEDs get too hot, their brightness drops. This is called thermal droop and can lower light output a lot. To prevent this, pick lamps with built-in heat sinks or external radiators. These features help spread heat and keep the lamp cool.

⚠️ Note: Always check the room temperature and make sure there’s good airflow to keep LEDs from overheating.

Replacing Worn-Out Components

Even though LED lamps last a long time, some parts may wear out. Replacing these parts on time keeps your lighting system working well. Here’s what you should know:

Component Type	Failure Rate (%)	Lifespan (Hours)	Notes
LED	Low	50,000+	Long-lasting but depends on other parts
Driver Circuitry	60+	Varies	Most common cause of failures
Other Components	Varies	Varies	Adds to system complexity

The driver circuitry often fails before the LED itself. It manages power and can wear out faster. Check and replace faulty drivers regularly to avoid problems.

🔧 Pro Tip: Buy high-quality LED lamps with warranties. This ensures you get reliable parts and help if replacements are needed.

By cleaning fixtures, stopping overheating, and replacing worn-out parts, you can make your LED lamps last longer. Regular care keeps your lighting safe and working well for years.

Setting up LED lamps the right way helps them work better and last longer. This guide showed you how to install bulbs, strips, tubes, and downlights easily. Installing them properly stops problems like flickering or getting too hot. Taking care of them, like cleaning and fixing broken parts, keeps them working well.

Example Business	Energy Savings	Extra Advantages
Big Retail Store	60%	Better shopping experience, higher sales, fewer repairs

By using this guide, you can save power, get brighter lights, and make your space safer. Spend time installing and caring for your LED lamps to enjoy their benefits for years.

FAQ

How do you pick the right LED lamp?

First, check the fixture's size and wattage limit. Match the bulb type and base to the fixture. Think about the room's needs, like brightness and color. For enclosed fixtures, choose bulbs made to handle heat.

Can you use LED lamps with other bulb types?

It’s best not to mix LED lamps with other bulbs. Different bulbs need different power and create different heat levels. Mixing them can cause problems or damage. Use one type for better performance.

Why do LED lamps flicker after being installed?

Flickering happens when dimmers or power supplies don’t match. Make sure the dimmer works with your LED lamp. Check for loose wires or damaged parts. Replace anything broken to stop flickering.

Are LED lamps okay for enclosed fixtures?

Not all LED lamps work in closed fixtures. Some overheat without airflow. Look for LEDs marked "safe for enclosed fixtures" to avoid overheating and stay safe.

How can you make LED lamps last longer?

Keep lamps cool by using open fixtures and avoiding heat. Clean them often to remove dust. Use surge protectors to stop power damage. Buy good-quality lamps with warranties for longer use.
