Design and Install a Complete LED Light System for Maximum Efficiency

If you're looking to design and install an LED light system for your home, good planning is essential to achieve the best results. By selecting a quality product, you can reduce energy consumption and save money. Check out the table below to understand how LED lighting compares to older types:

LED modules are available in various shapes and sizes, making them suitable for almost any space in your home. You can create innovative designs with them. Always consider aesthetics and functionality to ensure optimal performance. When you learn about us, you'll discover how our new LED products can enhance your home’s brightness while helping you save money.

Key Takeaways

• LED lights use less energy and last longer than old bulbs. They save up to 75% energy and work for over 50,000 hours.

• Plan your LED system with care. Look at each room’s lighting needs. Make a layout that avoids shadows and glare.

• Pick good parts for your system. Choose efficient LED chips and drivers. This helps your lights work well and save energy.

• Take care of your LED system often. Clean the fixtures and check the connections. This keeps your lights bright and working.

• Use smart controls to save more energy. Dimming and scheduling can lower energy use and make rooms more comfortable.

Design and Install for Efficiency

Define Maximum Efficiency

When you set up an LED lighting system, you want it to work really well. This means you want bright light but use less energy. You also want the lights to last a long time and work well every day. There are rules to help you know what is good. For example, the Energy Independence and Security Act says lights need at least 45 lumens per watt. The Department of Energy will make this number 120 lumens per watt by 2028. ENERGY STAR products are even better. They have good color and a three-year warranty.

Key Metrics

There are different ways to check how well your LED system works. Energy savings percentage shows how much less energy you use with LEDs. Customer satisfaction score tells you if people like the lights. Installation efficiency shows how fast and easy the job is. Inventory turnover rate tells you how quickly you use and replace supplies.

Common Mistakes

You can stop many problems if you plan before you start your LED system. Some people forget to check if parts work together. This can make lights flicker or stop working. Bad electrical connections can make lights dim or break parts. If you do not control heat, lights may not last long. Voltage problems can change how bright or colorful the lights are. Things like water or dust can also make your lights work less well.

Tip: Always follow manufacturer guidelines and check compatibility before you start your project.

Plan Your LED System

Assess Lighting Needs

First, you need to know what kind of light each space needs. Every room is different. Kitchens need bright light for cooking. Living rooms need softer light for relaxing. Look at how big the room is. Check how much sunlight comes in. Think about what people do in the room. Ask people who use the space what they like.

Tip: Good lighting keeps people safe and helps them do their work. Offices, schools, and factories must follow rules for lighting. This keeps everyone safe and comfortable.

Here is a table to help you keep track of your notes:

• Think about the size and use of the room.

• Notice how much sunlight the room gets.

• Ask people what kind of light they want.

Create a Layout

You need a plan before you put in your LED system. A layout shows where each light will go. This helps your lights look good and work well. Put lights in places that stop shadows and glare. Use sunlight when you can to save energy.

• Use sunlight to cut down on electric lights.

• Place lights to stop glare and make the room nice.

• Add controls so you can change how bright the lights are.

Note: In big spaces, like offices or stores, think about how people move. Put lights where people need them most.

Select Fixtures

Picking the right fixtures is important for how your lights look and work. Good LED fixtures last longer and use less energy. Choose fixtures that fit your style and needs. There are many modern LED designs to pick from.

• Pick fixtures that let you change color and brightness.

• Choose designs that match your room, like simple or bold shapes.

• Try smart fixtures you can control with your phone or voice.

Callout: LED fixtures use about 80% less energy than old lights. This saves you money and helps the earth.

Choose Efficient Components

LED Chips and Drivers

You want your LED system to work well and last. Pick good LED chips and drivers. Modern chips use Gallium Nitride (GaN) and Silicon Carbide (SiC). These materials help lights stay cool and save energy. Many new drivers have smart features. You can set them to dim lights or stop faults. Some drivers use common cathode ICs. These lower voltage needs and cut heat loss. This can save up to 60% more energy.

Tip: Always check your chips and drivers’ specs. Make sure they match in voltage, current, and power. Pick drivers with high efficiency, like 95-98%. This helps you avoid wasting energy.

Optics and Wiring

Good optics spread light evenly. You want every part of the room bright and clear. Advanced optics keep color steady and cut glare. This means you use less energy and get better results. Wiring is important too. Wires with high resistance waste power as heat. Use thick, short wires to keep energy loss low.

• Use optics that fit your room’s needs.

• Pick wiring that matches your system’s voltage and current.

Driver Placement

Where you put drivers changes how your system works. Place drivers close to LEDs to stop voltage drop. This keeps lights bright and steady. Switched mode power supplies work better than linear ones. They waste less power as heat. Add heat sinks or thermal cutoff switches to stop overheating. Smart drivers can watch temperature and warn you if something is wrong.

• Pick a spot with good airflow for drivers.

• Keep drivers away from heat sources.

• Use smart drivers for real-time checks.

Note: When you Design and Install your LED system, always check that all parts work together. Make sure drivers, chips, and wiring match. This helps your system run safely and efficiently.

Install for Performance

Placement and Mounting

You need to place and mount your LED fixtures in the right spots to get the best light and save energy. Good placement stops shadows and glare. You should think about how people move in the room and where they need light most. For long runs or many fixtures, use the hub or T-method. This method uses a heavy wire to a central hub, then smaller wires branch out. For short runs with few lights, the daisy chain method works well.

Tip: Use 12-gauge wire for runs over 100 feet or systems above 200 watts. Use 14-gauge wire for shorter runs and lighter loads. Use 10-gauge wire for very long runs or high wattage systems.

Electrical Connections

Safe electrical connections help your LED system work well and last longer. Always check state and local codes before you start. Switch off the power to the circuit to prevent shock. Use insulated tools for safety. Keep LED fixtures away from children and pets. Check for damage before installing, like cracks or exposed wires. For outdoor setups, use weatherproof fixtures with a high IP rating.

• Follow manufacturer instructions for wiring and connections.

• Make sure all parts are compatible and voltage is regulated.

• Use proper wire size for each run to avoid voltage drop.

Note: Proper wiring keeps your system safe and efficient. Each LED fixture may need special steps, so always read the manual.

Thermal Management

LEDs make heat when they work. You must manage this heat to keep your lights bright and lasting. Good thermal management stops overheating, which can lower brightness and wear out LEDs faster. High temperatures cause LEDs to degrade quickly. Use heat sinks and place drivers where air can flow. Avoid putting drivers near heat sources.

• LEDs can turn up to 70% of their energy into heat.

• Higher junction temperatures speed up lumen loss.

• Aging tests show LEDs fail sooner if exposed to too much heat.

"The quality of materials used to manage heat is the biggest factor in determining the lifespan of LEDs, as excessive heat can lead to both reduced light output and complete failure of internal components."

When you Design and Install your LED system, always follow manufacturer guidelines. This helps you keep your system safe, efficient, and long-lasting.

Optimize and Maintain

Reduce Energy Loss

You can make your LED system work better by stopping energy waste. Start with an energy check to see where power is lost. Use smart lighting to control your lights. Change your lighting plan to use less energy. Put in dimmable LEDs for places that need less light. Use special lights for tasks like reading or cooking. Change old fixtures to new LED ones. Teach everyone to save energy. Pick Energy Star products for better savings. Use tools to watch how much energy you use. Some programs can help you pay less for power.

• Check your energy use often.

• Use dimmable and special LEDs.

• Change old lights and teach others.

• Watch your energy with smart tools.

LEDs use about 75% less energy than old lights. This saves you money and helps the planet.

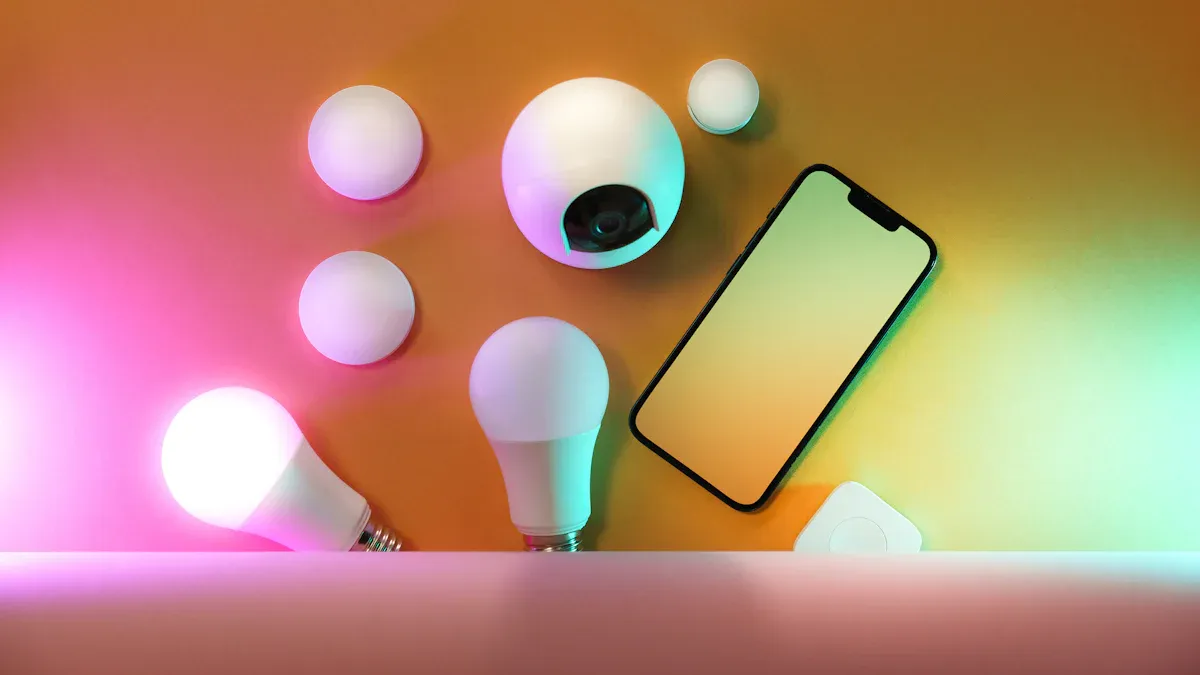

Smart Controls

Smart controls help your lights use less energy and are easy to use. You can pick from different types:

1. Smart lighting lets you change brightness, color, and set times.

2. Retrofit systems add smart features to old lights.

3. Smart switches and dimmers let you use your phone and sensors.

4. Plug-and-play kits are simple to set up and work fast.

Smart controls help you set lights for comfort and save power. Dimming and sensors mean lights are only on when needed.

Dimming lights can make a room feel nice, save energy, and help the earth.

Maintenance Tips

Keep your lights clean, check for heat, keep voltage steady, use the right dimming, look for broken parts, and do not turn lights on and off too much to help them last longer.

Taking care of your LED system keeps it bright and safe. Clean your lights every 6 to 12 months for more light. Check and tighten wires once a year. Change bulbs before they stop working. Clean lenses and covers for the best light. Set controls so lights only turn on when needed.

• Check lights often.

• Clean bulbs and covers.

• Change bad bulbs and parts on time.

• Tighten wires to stop flicker.

Clean lights can make them up to 30% brighter without using more power.

Troubleshooting

If your LED lights have problems, you can fix many things yourself. If lights flicker, use a dimmer made for LEDs or fix the power. If you hear buzzing, get a dimmer made for LEDs. If lights get too hot, let air move better or use a new fixture. If a light flashes and stops, check the driver or voltage. Pick the right beam angle for your space. If lights are too dim, use bulbs with more lumens. Always follow the maker’s rules when you Design and Install your system.

• Flicker: Use the right dimmer or fix power.

• Buzzing: Use the right dimmer or switch.

• Overheating: Let air move or change the fixture.

• Dim lights: Use bulbs with more lumens.

Keeping your system working well saves money, helps the earth, and makes your lights last longer.

If you want your LED system to work well, you need to plan ahead. Pick good parts and put them in the right way. LED lights use much less energy and last a long time. They can save up to 80% energy and work for over 50,000 hours. Every part, like the chip, driver, and heat sink, helps your lights work better. Clean your system and check it often to save even more energy.

• LED Lighting Drives Efficiency & Control tells how smart controls help save energy.

• Benefits Of LED Lighting Design For Energy Efficiency shows that good design saves power and looks nice.

FAQ

How do you choose the right LED brightness for each room?

You should check the room size and purpose. Kitchens need bright lights, while bedrooms need softer ones. Look for lumens on the package. More lumens mean brighter light.

Can you install LED lights yourself?

You can install simple LED bulbs and fixtures. For complex systems, you should ask a licensed electrician. Always turn off the power before you start.

Why do LED lights sometimes flicker?

Flickering often happens when you use the wrong dimmer or driver. You should use dimmers made for LEDs. Check for loose wires or voltage problems.

How long do LED lights last?

Most LED lights last between 25,000 and 50,000 hours. You can use them for many years. Clean your lights and keep them cool to help them last longer.

Are LED lights safe for the environment?

LED lights use less energy and do not have harmful chemicals like mercury. You help the planet when you switch to LEDs. You can recycle old LED bulbs.
