LED T5 Lamps Installation Guide, Energy Savings, and Top Retrofit Options for Fluorescent Replacements

You can easily replace fluorescent tubes with LED T5 lamps to save energy and reduce costs. Studies show that using LED T5 lamps can cut energy consumption by about 44%. These LED T5 lamps last 3 to 5 times longer than traditional fluorescent tubes, meaning fewer replacements and less waste. Unlike fluorescent tubes, LED T5 lamps do not contain harmful substances like mercury, making them a safer choice for the environment. Before installing LED T5 lamps, make sure your fixture is compatible. This guide will help you brighten your home or workspace efficiently with the latest LED Light technology. To learn more about us and explore our product offerings, visit our Home page and discover how we can improve your lighting solutions.

Key Takeaways

• LED T5 lamps use up to 65% less energy. They last 3 to 5 times longer than fluorescent tubes. This helps save money and makes less trash.

• Before you start, check your fixture’s size and socket type. Make sure the ballast works with your new lamp. This helps you upgrade safely and easily.

• There are three main retrofit options. Plug-and-play is easy. Ballast bypass takes more work but saves more energy. External driver gives the best control and efficiency.

• Always follow safety steps when installing. Turn off the power first. Use the right tools. If you are not sure, hire an electrician.

• Pick the right LED T5 lamp for your needs. Think about brightness and color temperature. Check how strong it is and if it has a warranty. This helps you get the best value and performance.

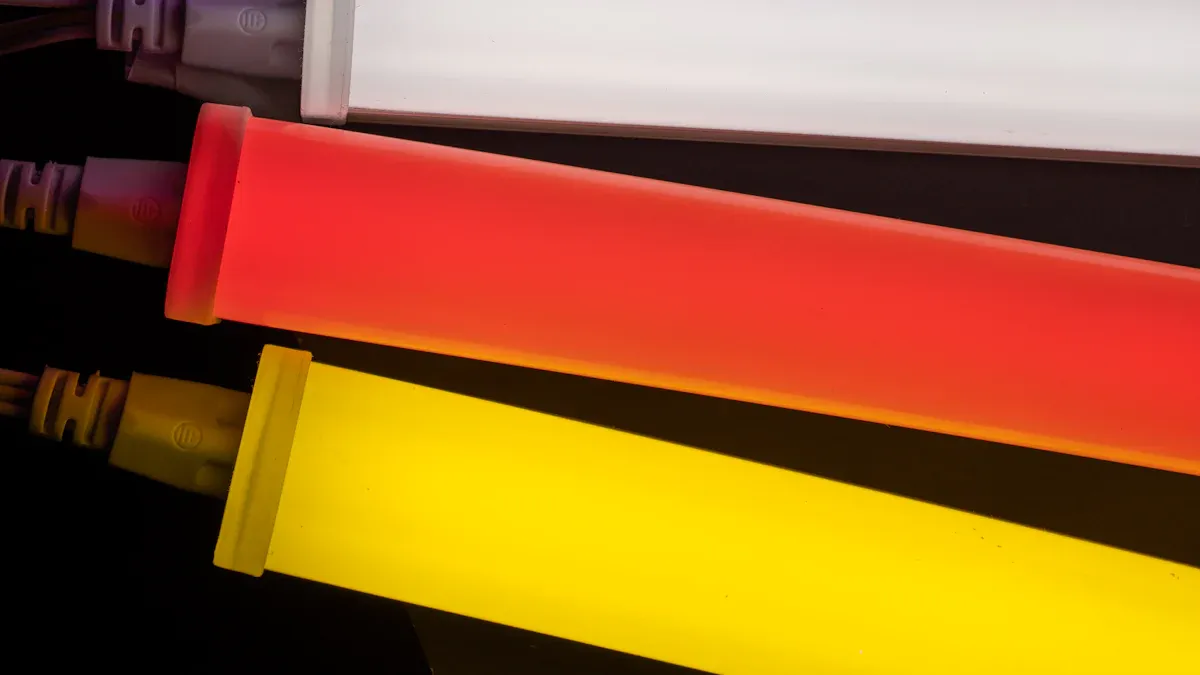

LED T5 Lamps Overview

Benefits

When you pick LED T5 lamps, you get many good things. These lamps save energy and last a long time. They can work for over 50,000 hours. This means you do not need to change them often. You will also spend less money on new lights. LED tube lights turn on right away. You do not have to wait for them to get bright. They do not have mercury or other dangerous stuff. This makes them safer for your home and the earth.

• LED T5 lamps use less power than incandescent, fluorescent, or CFL bulbs. This helps you pay less for electricity.

• You can choose from many color temperatures. Pick the one that fits your mood or room.

• The small and slim shape looks good in modern lights and decorations.

• LED tube lights can work with dimming systems. You can change how bright they are.

• These lights do not break easily if bumped or shaken. They work well in busy places.

• LED tube lights help the planet because they use less energy and last longer.

• Many LED tube lights can link to smart lighting and green energy.

💡 Tip: Even though LED T5 lamps cost more at first, you can get your money back in less than a year by saving energy. In five years, you could save almost $1,700 with an 8-tube fixture instead of using fluorescent tubes.

Applications

You can use LED tube lights in lots of places at work or at home. They are flexible and save energy, so many people like them.

• Offices, stores, and warehouses use LED tube lights for bright, even light and to save money.

• Schools, hospitals, and factories use LED tube lamps because they last long and are safe.

• At home, you can put LED tube lights under kitchen cabinets or in living rooms for clear light.

• LED tube lights also work in workshops, garages, aquariums, and greenhouses.

• Their small size and easy fit make LED tube lights a smart choice for almost any place.

You will see that LED light tubes are a good and energy-saving way to light up many spaces. They work well in many places and help you use less energy.

Fluorescent to LED Conversion

Why Convert

You may wonder why so many people choose a fluorescent to LED conversion. When you convert fluorescent lighting to LED, you get many benefits. Here are some of the most common reasons:

• LED fluorescent replacement lamps use about 50% less energy than old fluorescent tubes.

• LEDs last much longer. Some LED tubes can work up to 100,000 hours. You will not need to change them as often.

• LED T5 lamps give you brighter light and better efficiency. More of the electricity turns into light, not heat.

• You help the environment. LEDs create less waste because you replace them less often. They also use less energy.

• Retrofit kits make the conversion easy. You can install many LED fluorescent replacement tubes without rewiring or changing the ballast. This saves time and labor costs.

• Retrofitting costs less than buying all new fixtures.

• LEDs do not make UV or IR light. This makes your lighting safer.

• You will see lower electricity bills and spend less on maintenance over time.

⚡ Tip: The transition to LED lighting is a smart move for both your wallet and the planet.

You may face some challenges during the conversion. Sometimes, old ballasts or incorrect wiring can stop LED tubes from working. You must check that your LED tubes match your fixtures. Some fixtures have shunted sockets, which can make the conversion harder. Retrofit kits can help solve these problems and make the transition to LED smoother.

Energy Savings

Switching to LED fluorescent replacement lamps brings big energy savings. You can cut your energy use by up to 65% each year. This means you pay less for power and help lower carbon emissions. Look at the table below to see how much you can save with a fluorescent to LED conversion in a standard office:

You can get even more savings if you use LED luminaires with daylight sensors or dimming controls. Some offices have seen energy savings as high as 79%. The transition to LED not only cuts costs but also helps the environment. Over time, the efficiency of LED lighting means you spend less on both energy and maintenance. When you choose a fluorescent replacement, you make your lighting system better for years to come.

LED T5 Lamps Installation Guide

Safety Tips

You must always put safety first when you start any installation. Before you touch any wires or fixtures, turn off the power at the circuit breaker. Use a voltage tester to make sure the power is off. Wear safety glasses and gloves to protect your eyes and hands. Insulated tools help keep you safe from electric shock. Never rush the process. Take your time and follow each step in the guide.

Here is a list of tools and equipment you need for a safe installation method:

1. Ladder for reaching ceiling fixtures.

2. Screwdriver for removing covers and ballasts.

3. Wire strippers for preparing wires.

4. Wire nuts for secure connections.

5. Voltage tester to check for live wires.

6. Safety glasses and gloves for protection.

⚠️ Tip: Always read the manufacturer’s instructions for your specific LED tube lights before you begin. Each brand may have different steps or warnings.

Compatibility Check

You need to check if your fixture works with LED T5 lamps before you start the installation. Not all fixtures fit every type of LED tube lamp. First, measure the old tube. T5 tubes are about 5/8 inch in diameter. T8 and T12 tubes are larger and will not fit T5 fixtures. Only use LED tube lights that match your fixture size.

Next, look at the socket type. T5 sockets are different from T8 or T12. If you try to use the wrong size, the LED tube light will not fit or work. Check the ballast type by reading the label inside the fixture. Some LED tubes work with electronic ballasts (Type A), while others need you to remove the ballast (Type B). Type C tubes use an external driver.

You also need to check the tombstone, which is the lamp holder at each end of the fixture. Use a voltmeter to see if the tombstones are shunted or non-shunted. Single-ended LED tube lights need non-shunted tombstones. Double-ended LED tube lights can work with both types. If your tombstones do not match, you may need to rewire or replace them.

📝 Note: Always follow the wiring diagram from the LED tube lights manufacturer. This helps you avoid mistakes and keeps the installation safe.

Step-by-Step Installation

You can use this led retrofit guide for most common installation methods. The steps may change a little based on the type of LED tube lights you choose: Type A (plug-and-play), Type B (ballast bypass), or Type C (external driver).

1. Preparation

• Turn off the power at the breaker.

• Use a voltage tester to make sure the fixture is not live.

• Gather all tools and safety gear.

2. Remove Old Tubes and Ballast

• Take out the old fluorescent tubes.

• Remove the cover from the fixture.

• If you use Type B or Type C LED tube lights, unscrew and disconnect the ballast. Note how the wires connect.

3. Check and Prepare Tombstones

• Inspect the tombstones. For single-ended LED tube lights, make sure you have non-shunted tombstones.

• Replace or rewire tombstones if needed, following the LED tube light retrofitting instructions.

4. Wiring

• For Type A LED tubes, you can often insert the new LED tube lamp directly if the ballast is compatible.

• For Type B, connect the wires directly to the tombstones, bypassing the ballast. Use wire nuts to secure all connections. Make sure no wires are exposed.

• For Type C, install the external driver as shown in the manufacturer’s guide, then connect the wires to the tombstones.

5. Install New LED Tube Lights

• Insert the LED tube lights into the sockets. Rotate them 90 degrees to lock them in place.

• Replace the fixture cover.

6. Test the Installation

• Turn the power back on at the breaker.

• Flip the light switch to test the new LED light tubes.

• If the lights do not turn on, turn off the power and check all connections.

💡 Tip: If you feel unsure about any step, ask a licensed electrician for help. Safe installation protects you and your property.

This led tube light retrofitting process helps you upgrade your lighting safely and efficiently. You save energy, lower your bills, and enjoy brighter, longer-lasting light. Use this guide for your next installation and see the benefits of modern led tube lamps in your space.

Retrofit Options for LED Fluorescent Replacement

When you want to change to led fluorescent replacement, there are three main types. Each type has its own way to install, needs for working, and good points. Pick the best led tube lights for your fixture and what you want from your lighting.

Type A (Plug-and-Play)

Type A led tube lights are the simplest led fluorescent replacement. You just take out the old tube and put in the new led tube lights. This way uses the same ballast, so you do not have to change any wires. You can finish fast, and you do not need an electrician.

Pros:

• Fastest way to upgrade led fluorescent replacement

• No need to change wiring

• Good for quick jobs

Cons:

• Ballast might stop working and cause problems

• Not every ballast works with all led tube lights

• Does not make your fixture look new

📝 Tip: Always check if your ballast fits the led tube lights before you begin.

Type B (Ballast Bypass)

Type B led tube lights, called ballast bypass, need you to take out the ballast and connect the sockets right to power. This led fluorescent replacement saves energy because you do not use the ballast. You must be careful and use the right sockets.

Pros:

• No more fixing the ballast

• Uses less energy

• Works with most fixtures after you change the wiring

Cons:

• Takes longer to install

• Can be unsafe if not wired right

• Needs non-shunted sockets for single-ended tubes

Type B led retrofit kits are good if you want to save money over time and do not mind a harder job.

Type C (External Driver)

Type C led tube lights use an external driver, not a ballast. You take out the old ballast and put in the driver, which gives power to the led tube lights. This led fluorescent replacement gives you the most control and lasts the longest.

Pros:

• Can dim with 0-10V controls

• Best for saving energy and lasting a long time

• Great for fixtures with 1 to 4 lamps

Cons:

• Needs a new driver put in

• Costs more at first

• Not a direct led replacement for every fixture

Pick Type C if you want led light tubes that can dim and work the best. This is a smart pick for new jobs or when you want the most trusted led retrofits.

💡 Note: Hybrid led tube lights can work with or without a ballast, but they can cost more and sometimes do not save as much energy.

When you look at replacement choices, think about your fixture, your budget, and how much work you want to do. Each led fluorescent replacement has its own good points. You can find the best led tube lights for you by looking at these things.

Choosing the Right LED T5 Lamps

Factors to Consider

When you choose LED T5 lamps, you want to make sure they fit your needs. You can start by looking at the brightness. Lamps come in a range from 300 to 3,000 lumens. Pick a level that matches your space. For a cozy room, you might want a lower lumen lamp. For a workshop or office, a higher lumen lamp works better.

Color temperature also matters. Warm white (around 3000K) gives a soft, relaxing light. Daywhite (up to 6500K) creates a bright, clear look. You can pick the color that fits your mood or task. Energy efficiency helps you save money. Look for lamps with an Energy Star rating or other energy labels. These lamps use less power and lower your bills.

Durability is important. Strong construction means your lamp will last longer. You should also check the brand. Trusted brands often give you a warranty. Some companies, like Alliance Outdoor Lighting, Light Efficient Design, and MaxLite, offer up to a 10-year warranty on their LED T5 lamps. This gives you peace of mind if something goes wrong.

Ballast compatibility is another key factor. Make sure your new lamp works with your fixture’s ballast. This helps you avoid flickering or short lamp life. If you plan a transition to led, always match the lamp to your fixture.

💡 Tip: Always read the product details and warranty information before you buy. This helps you get the best value from your led upgrade.

Common Mistakes

You can avoid many problems by watching out for common mistakes during your led upgrade. Some people forget to check the size of the lamp. T5 lamps are thinner than T8 or T12, so always measure before you buy. Others skip checking the ballast type. If your lamp does not match the ballast, it may not work or could fail early.

Many people ignore the color temperature. Picking the wrong color can make a room feel too cold or too yellow. You should also avoid buying from unknown brands. These lamps may not last as long or come with a good warranty.

Some skip reading the instructions. Each led retrofit kit or lamp may have special steps. If you do not follow them, you risk poor performance or safety issues. Always test your new lamp after installation to make sure it works well.

⚠️ Alert: Take your time during the led upgrade. Careful planning helps you avoid costly mistakes and ensures a smooth conversion.

Energy Savings Guide

Savings Calculation

You can figure out your energy savings by looking at how much power your old fluorescent tubes use compared to the new LED T5 lamps. For example, a regular 28-watt fluorescent T5 tube can be replaced with a 15-watt LED lamp. If you have high output tubes, a 54-watt fluorescent can be swapped for a 25-watt LED. This means you use a lot less energy every hour the lights are on.

To find out your total savings, you can use this easy formula:

Energy Savings = (Fluorescent Wattage − LED Wattage) × Hours Used Per Year × Electricity Rate

You need to know the wattage of both types of lamps, how many hours you use the lights each year, and how much you pay for electricity per kilowatt-hour. Many people use an online calculator to help with this. These tools let you type in the number of bulbs, hours, and your local electricity rate. The calculator then tells you your total energy savings, how fast you get your money back, and your return on investment. You should also remember that LED lamps last longer, so you save money on fixing and replacing them over time.

💡 Tip: Some utility companies give rebates if you switch to LED lighting. These can help you save even more money and get your payback faster.

Payback Example

You might want to know how long it takes to get your money back after you switch to LED T5 lamps. Most businesses see a payback time of about two years. Here is a simple example:

• The cost to change each lamp is between $20 and $40.

• Many businesses get an average return on investment of 45%.

• At a big office, like Marriott International headquarters, the yearly energy and maintenance savings can be as much as $120,000.

• Rebates and special offers from utility companies can lower your starting costs, so you get your payback even sooner.

You can see that the savings add up fast. If you use this guide to plan your project, you will have lower energy bills and less work fixing lights for many years.

LED Fluorescent Replacement Comparison

Options Table

When you look at LED T5 retrofit options, you should think about cost, how hard they are to put in, and how well they work. The table below shows the main differences. This helps you choose the best one for what you need.

You should also look at other important things when you compare LED T5 retrofits. The next table lists the main features to check before you pick.

💡 Tip: T5 LED lights use much less power than old fluorescent lamps. They also run cooler, which makes them safer and last longer.

Switching to LED T5 lamps has many good points. You use about half the energy, so your bills go down. LED T5 lamps last a long time, over 25,000 hours. This means you do not need to change them often. These lamps do not have dangerous things like mercury. That makes your space safer for everyone. It is easier to take care of your lights because these lamps fit most fixtures.

Look at your lights now and choose the best retrofit for you. If your project is hard, ask a lighting expert for help. They can check if your fixtures work with LED T5 lamps. Upgrading to LED saves you money for years and helps the planet too.

FAQ

How do you know if your fixture is compatible with LED T5 lamps?

Check the tube size and socket type. T5 lamps are thinner than T8 or T12. Read the label on your fixture. Make sure your ballast matches the LED lamp type. Always follow the manufacturer’s instructions for the best results.

Can you install LED T5 lamps without an electrician?

You can install plug-and-play (Type A) LED T5 lamps yourself. For ballast bypass (Type B) or external driver (Type C), you should ask a licensed electrician. These types need wiring changes for safe and proper installation.

Do LED T5 lamps work with dimmer switches?

Some LED T5 lamps support dimming. Check the product label or packaging. You need a compatible dimmer switch and dimmable LED lamp. If you use the wrong dimmer, the lamp may flicker or not work.

How much money can you save by switching to LED T5 lamps?

You can save up to 65% on energy costs each year. LED T5 lamps also last longer, so you spend less on replacements. Many people see a payback in about two years. Utility rebates can help you save even more.
